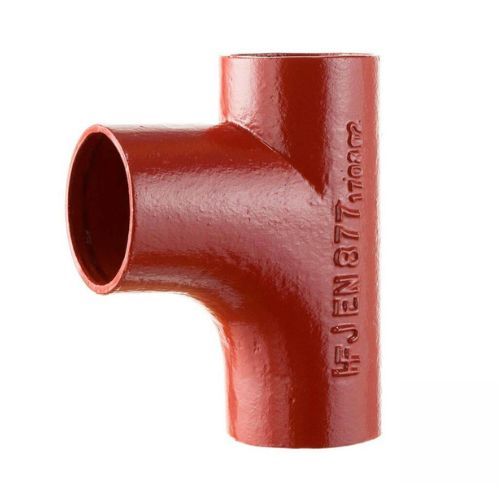

Cast Iron Halifax Soil Branch Curve - 88 Degree x 100mm
|Colour||Red Epoxy Coated|
|Life Expected||100 Years +|
|Specification||BS EN 877|
A soil branch is are one of the integral parts of any soil pipe system. It is used to bring horizontal and vertical pipe runs together, usually when connecting a pipe from a WC into the main vertical soil stack.
The angle of this 88 degree curve branch creates a 2 degree fall that promotes self-cleansing. This branch also has a longer connection and a more swept design than the HS4022 branch, making it more suitable for foul drainage discharge.
As Halifax pipes and fittings have no sockets, couplers are required to connect this branch to a pipe.
A full dimensional drawing of this product can be found in the Halifax technical catalogue.
Cast Iron Halifax Soil
Halifax Soil is a socketless cast iron drainage system used for the above ground discharge of foul drainage and rainwater. An extremely flexible system, Halifax soil can be jointed using three different coupling options.
It is manufactured to BS EN 877 and is BBA approved. Correctly installed, Halifax soil can last over 100 years. It is exceptionally strong and is resistant to high temperatures, acids, alkalis and salt spray.
The Halifax cast iron soil system will not expand, contract, combust or emit toxic fumes. It is the ideal solution for rainwater and soil stacks in large public buildings or blocks of apartments.
