Cast Iron Halifax Soil Branch Long Tail Corner - 88 Degree x 100mm

In stock
Code
HS4041

Click or tap the image to open in fullscreen

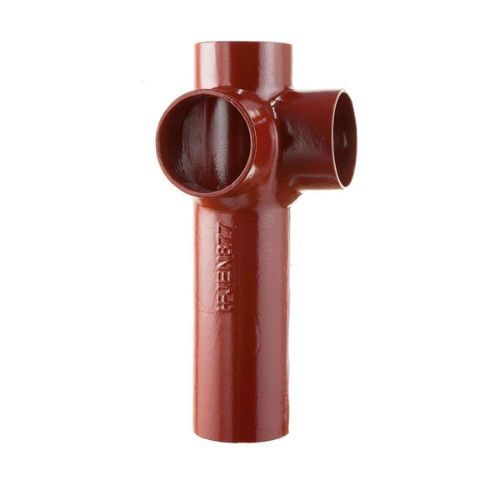

Cast Iron Halifax Soil Branch Long Tail Corner - 88 Degree x 100mm
More Information
Code HS4041
EAN Code 0691208229500
Angle 88 Degree
Brand Hargreaves Halifax
Colour Red Epoxy Coated
Material Cast Iron
Pack Size 0
Style Long Tail Corner
Life Expected 100 Years +
Specification BS EN 877
Size 100mm
£183.59 £152.99

Comer branches are used to connect to branch runs of drainage coming from different directions into a main soil stack. As the name suggests, they are most commonly found in the corner of a room.

The angle of this 88 degree corner branch creates a 2 degree fall that promotes self-cleansing. The long tail on this branch adds flexibility with the positioning of the connection to the pipe below.

As Halifax pipes and fittings have no sockets, couplers are required to connect this branch to a pipe.

A full dimensional drawing of this product can be found in the  Halifax technical catalogue.
