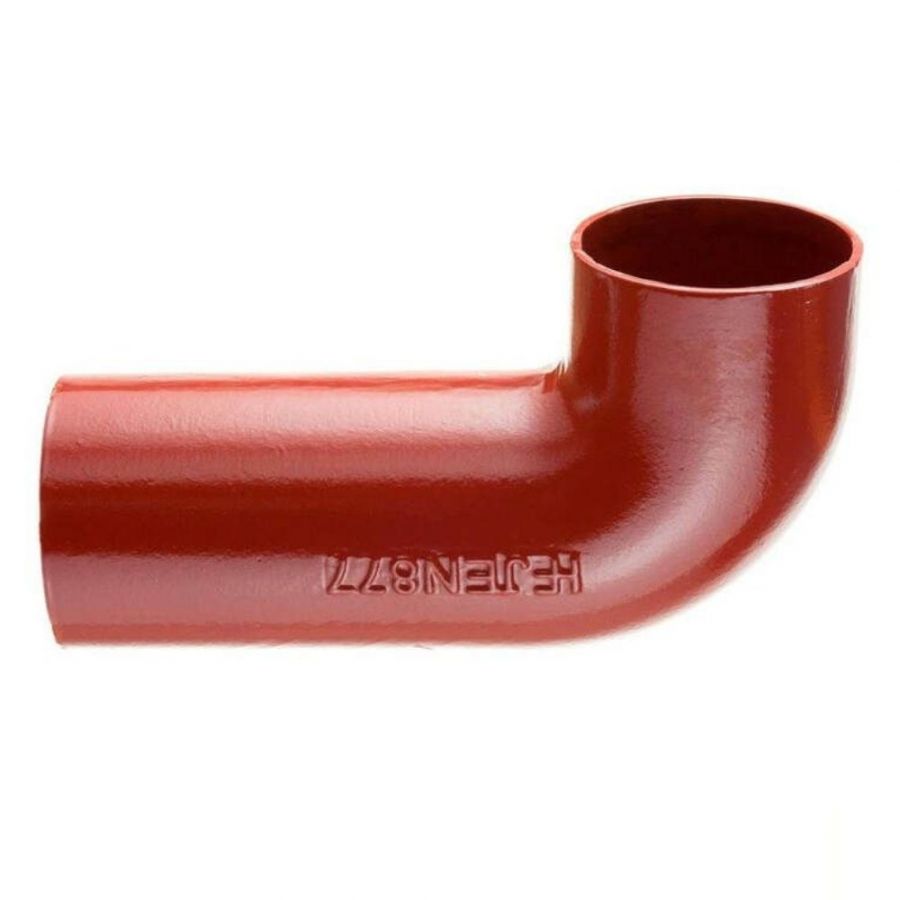

Cast Iron Halifax Soil Bend Long Tail - 88 Degree x 100mm
In stock
Code
HS4013
Click or tap the image to open in fullscreen
| Code | HS4013 |
|---|---|
| EAN Code | 0691208229395 |
| Angle | 88 Degree |
| Brand | Hargreaves Halifax |
| Colour | Red Epoxy Coated |
| Diameter | 100mm |
| Material | Cast Iron |
| Pack Size | Single |
| Life Expected | 100 Years + |
| Specification | BS EN 877 |
| System Size | 100mm |
This 88 degree long tail bend is sometimes referred to as a swivel bend or a pistol bend. It is used to create a sharp change of direction in the soil pipe, often in conjunction with another fitting.
As Halifax cast iron soil pipes and fittings have no sockets, couplers are required to connect this bend to a pipe.
A full dimensional drawing of this product can be found in the Halifax technical catalogue.
