Channel Drainage Corner Galvanised Steel
|Colour||Galvanised Steel (Grating)|
|Material||Polypropylene with Galvanised Grating|
|Style||Polypropylene with Galvanised Grating|
|Tonne Loading||Domestic Driveways|
|Guarantee||10 Year Manufacturer|
|Specification||BS EN 1433|

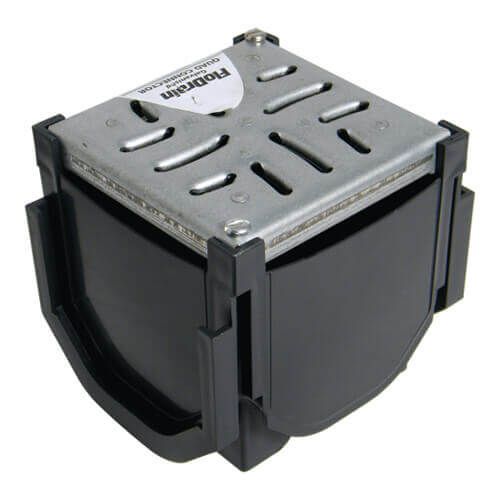

Drainage corner with grating - this quad connector is for use with 90 degree corners, tee or cross sections in a run of channel drainage. The corner section connects and locks easily to chanels via moulded connections.
Comes with a galvanised grating.
Domestic channel drains, sometimes called Aco or linear drains, are most commonly found around the edge of a driveway or forecourt, often between the driveway and the house or garage. They are also frequently installed at the edge of a patio or paved area.
No special tools are required to install channel drains and it is a fairly straightforward process, but it is important to note that they must always be installed within a bed of concrete. Full instructions can be viewed here.
The water collected within the channel drainage system should be fed into a soakaway system or a surface water drain. If you don’t have an existing soakaway they are simple to construct using our modular crate system. Further details about soakaway construction can be read here.
