Channel Drainage Grate Galvanised Steel - Garage Pack
| Code | D751 |
|---|---|
| EAN Code | 5055149952913 |
| Weight (kg) | 9.195000 |
| Brand | FloPlast |
| Colour | Galvanised Steel (Grating) |
| Length | 1mtr |
| Material | Polypropylene with Galvanised Grating |
| Pack Size | 3 Lengths |
| Style | Polypropylene with Galvanised Grating |
| Tonne Loading | Domestic Driveways |
| Dimension | 1000mm (L) x 115mm (W) x 100mm (H) |
| Guarantee | 10 Year Manufacturer Guarantee |
| Specification | BS EN 1433 |
| Size | 100mm |

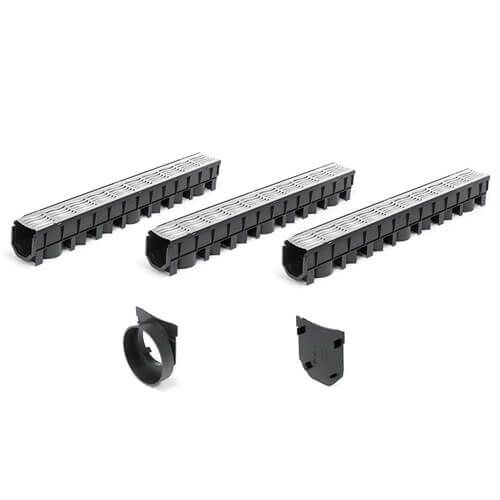

Channel Drainage Garage Pack With Galvanised Grating Containing 3 x 1M Lengths (Interlocking) 1 x End Outlet 1 x End Cap
Please click here to read more about our Channel Drain Garage Packs.
Please watch our overview video below
Domestic channel drains, sometimes called Aco or linear drains, are most commonly found around the edge of a driveway or forecourt, often between the driveway and the house or garage. They are also frequently installed at the edge of a patio or paved area.
No special tools are required to install channel drains and it is a fairly straightforward process, but it is important to note that they must always be installed within a bed of concrete. Full instructions can be viewed here.
The water collected within the channel drainage system should be fed into a soakaway system or a surface water drain. If you don’t have an existing soakaway they are simple to construct using our modular crate system. Further details about soakaway construction can be read here.
