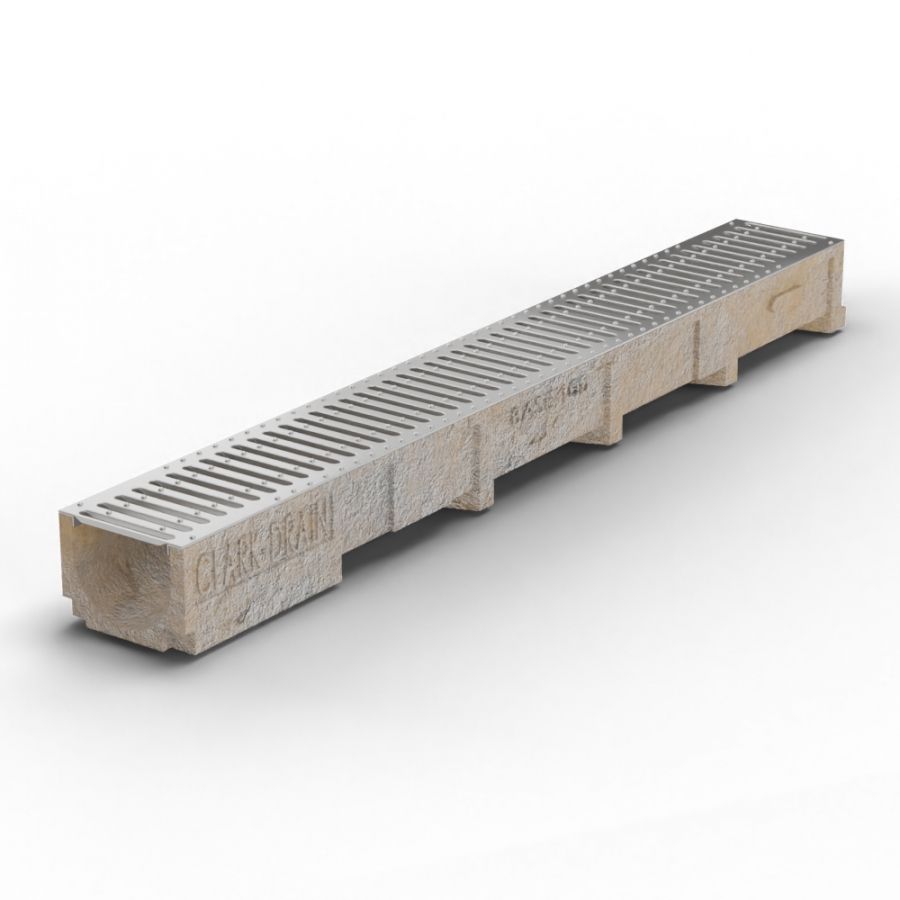

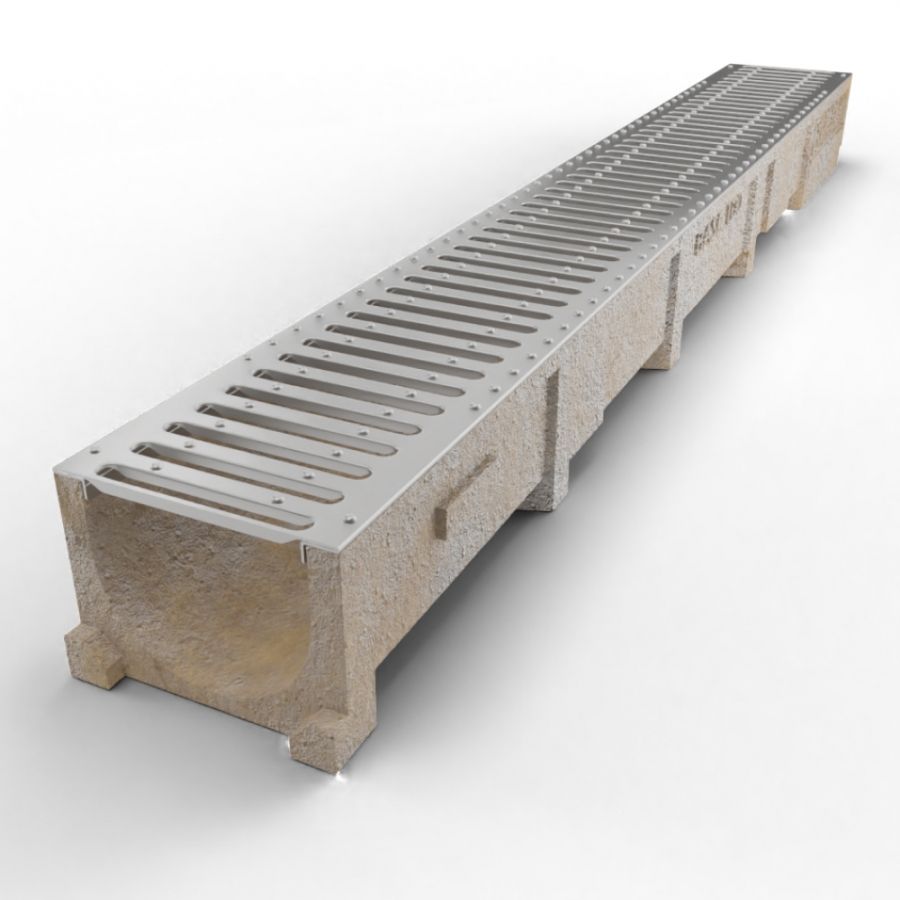

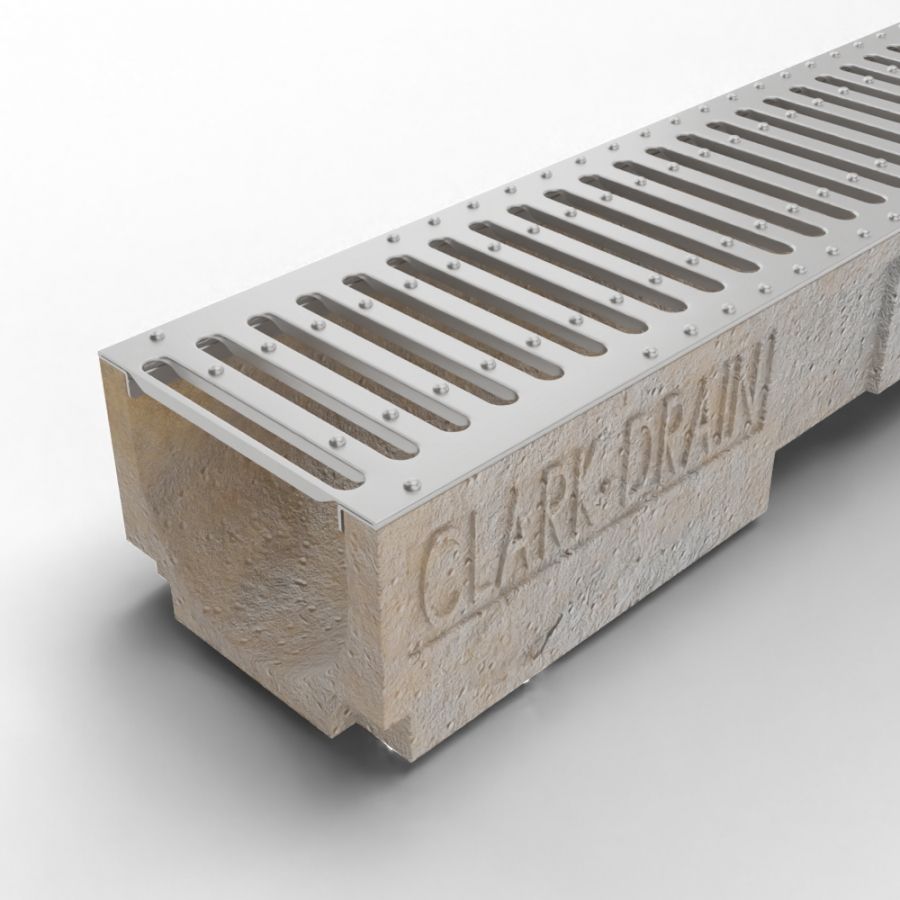

Channel Drainage Polymer Concrete - 1mtr

In stock
Code
CDCS10.10
From 6 reviews
More Information
Code CDCS10.10
EAN Code 0691208216852
Brand Clark-Drain
Colour Galvanised Steel (Grating)
Length 1mtr
Material Polymer Concrete & Galvanised Steel
Tonne Loading Domestic Thresholds (A15)
Dimension 1000mm (L) x 120mm (W) x 75mm (H)
Size 1mtr
£14.78 £12.32
You need to spend another £250.00 to qualify for 2.5% discount.
This product incurs a one-off £10.00 + VAT delivery surcharge per order due to its size.

This Channel Drain has a load capacity of 1.5 Tonnes, making it suitable for pedestrian and garage thresholds, patios, gardens and play areas.

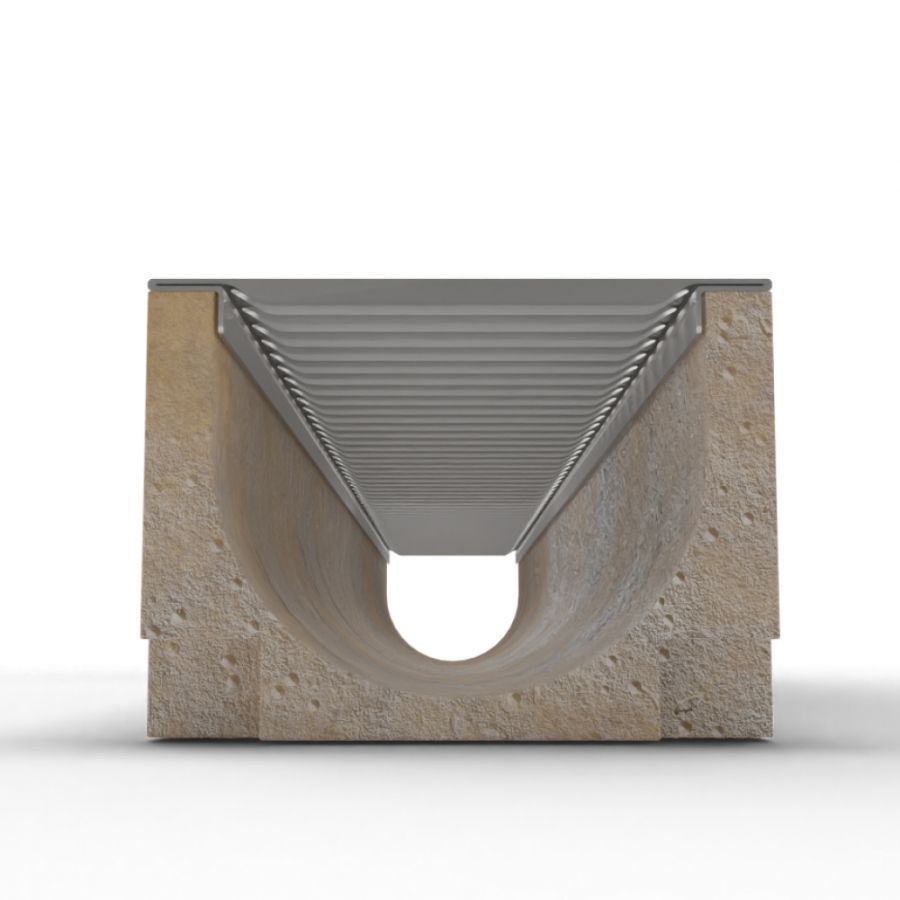

The grating is made from Galvanised Steel. The outlet is 110mm for connection to standard underground drainage and the channel has male and female ends for connecting lengths together.

L=1mtr x W=120mm x H=75mm

The internal depth to the bottom of the channel is 65mm.

Domestic channel drains, sometimes called Aco or linear drains, are most commonly found around the edge of a driveway or forecourt, often between the driveway and the house or garage. They are also frequently installed at the edge of a patio or paved area.

No special tools are required to install channel drains and it is a fairly straightforward process, but it is important to note that they must always be installed within a bed of concrete. Full instructions can be viewed here.

The water collected within the channel drainage system should be fed into a soakaway system or a surface water drain. If you don’t have an existing soakaway they are simple to construct using our modular crate system. Further details about soakaway construction can be read here.
