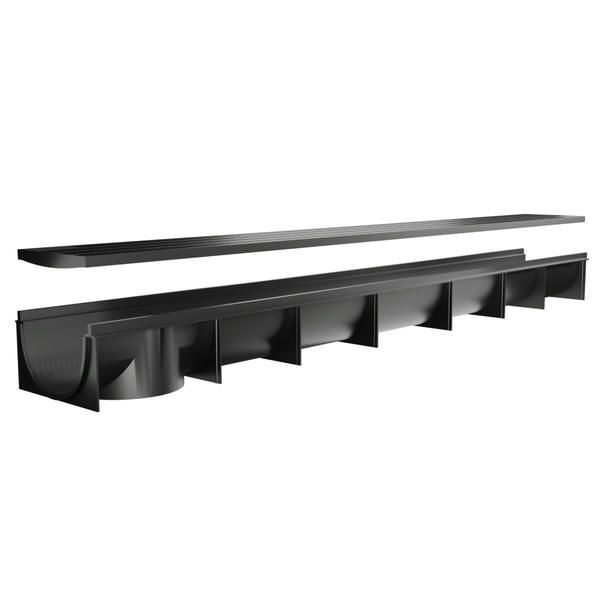

Channel Drainage Shallow Depth - 1mtr
|Tonne Loading||Domestic Driveways|
|Dimension||1000mm (L) x 148mm (W) x 91.5mm (H)|
Length = 1mtr x Width = 148mm x Height = 92mm
The internal depth to the bottom of the channel is 75mm. This is a bottom outlet channel that connects to 110mm PVC Underground Drainage.
This product is lightweight and robust. Its heat resistant formula makes it ideal for tarmac edging.
This product is ideal for use in garage thresholds, patios, gardens and play areas. Each channel in locked to the next one by male and female pin connections, so that several lengths can be laid together for fast, easy levelling.
There is a facility to screw down the grating if required (screws not provided).
Domestic channel drains, sometimes called Aco or linear drains, are most commonly found around the edge of a driveway or forecourt, often between the driveway and the house or garage. They are also frequently installed at the edge of a patio or paved area.
No special tools are required to install channel drains and it is a fairly straightforward process, but it is important to note that they must always be installed within a bed of concrete. Full instructions can be viewed here.
The water collected within the channel drainage system should be fed into a soakaway system or a surface water drain. If you don’t have an existing soakaway they are simple to construct using our modular crate system. Further details about soakaway construction can be read here.
