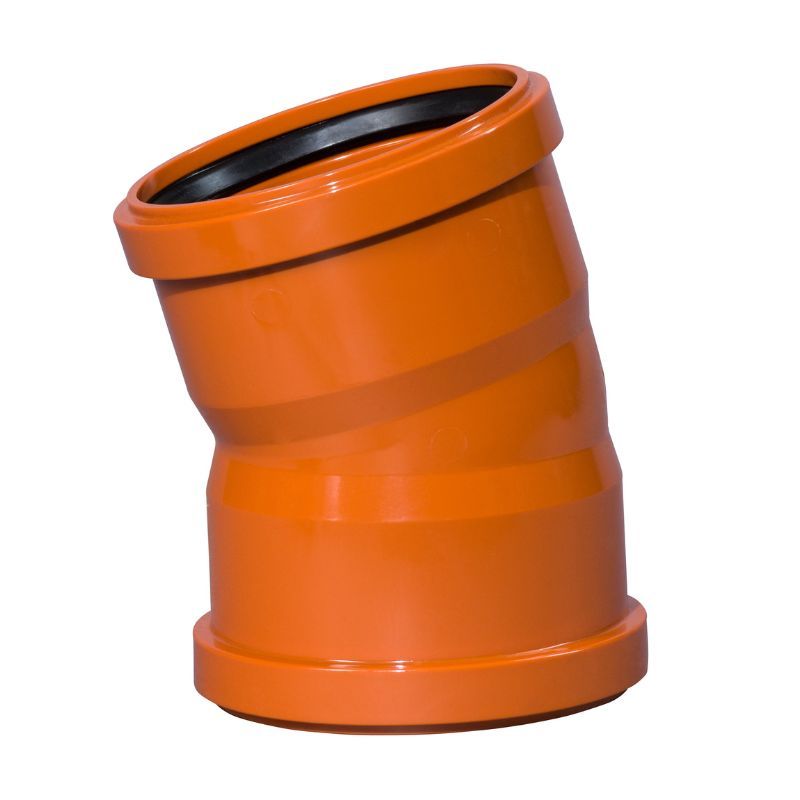

Drainage Bend Double Socket - 15 Degree x 110mm
Click or tap the image to open in fullscreen
| Code | UB11015D |
|---|
Product Overview
This 110mm 15 degree double socket drainage bend is the shallowest bend in our underground drainage range, often called an easy bend. It’s ideal for making gentle directional changes in a 110mm drainage pipe system, perfect for achieving smooth alignment in underground installations.
Key Features
- Fits standard 110mm underground drainage systems
- Double socket design – accepts a 110mm pipe at both ends
- 15 degree bend for shallow directional adjustments
- Durable, high-quality construction for long service life
- Compatible with a wide range of underground fittings
Installation Guidance
Both socketed ends are designed to accept 110mm pipe. If a pipe has been cut to length, chamfer the edge and apply our SG100 lubricant before insertion to ensure a secure, watertight seal.
This bend can also be connected to other fittings with pre-chamfered ends, such as single socket bends or gullies, for a customised installation layout.
Alternative Options
If you’re unsure of the exact bend angle required, consider an adjustable bend, which rotates to any angle between 0° and 90°, offering flexibility and saving time on site.
Product Video
Watch our short overview video below to see this fitting in more detail and understand how it can be used effectively in your installation.
