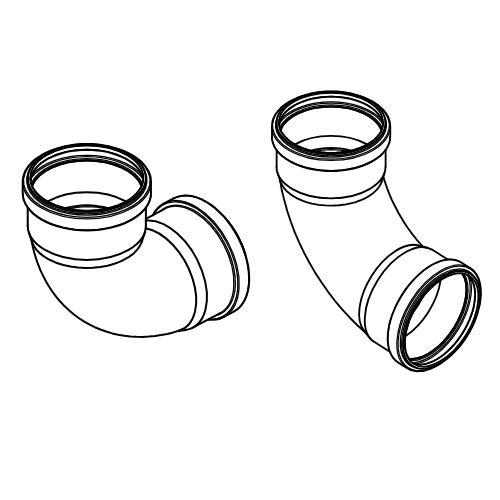

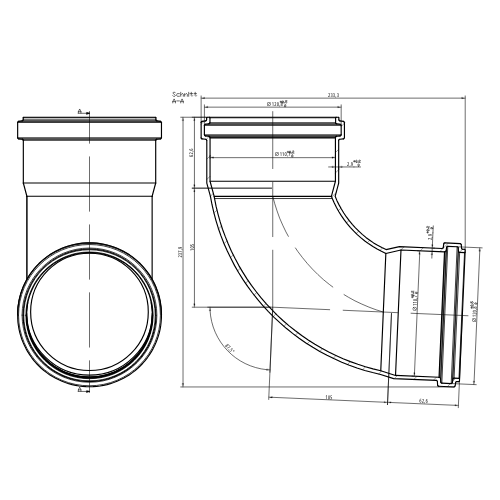

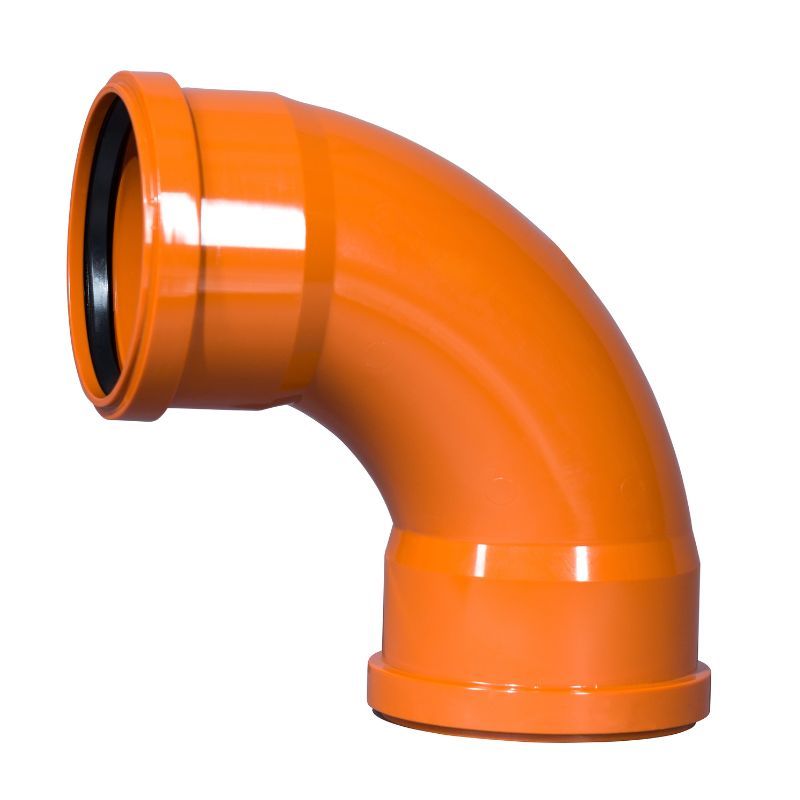

Drainage Bend Double Socket - 87.5 Degree x 110mm
In stock
Only %1 left
Code
UB11090D
Product Overview
This 110mm 87.5 degree bend with a double socket provides a controlled change of direction on underground runs. Often called a "90 degree bend" on site, the true 87.5 degree bend creates a small fall that helps keep flow moving. It sits within our range of drainage bends and works cleanly with other 110mm drainage pipe and fittings.
Key Features
- Double socket ends accept 110mm pipe on both sides for quick push-fit assembly
- True 87.5 degree geometry supports flow and reduces the risk of standing water
- Commonly used at the foot of a rainwater downpipe with a D96 rainwater adaptor
- Compatible with 110mm underground drainage system
Installation Guidance
- Insert the pre-chamfered spigot into the chamber inlet or fitting as required
- If a pipe is cut to length, chamfer the cut end and apply SG100 lubricant before pushing into the socket to achieve a watertight seal
- For pipe lengths and additional fittings, see our 110mm drainage pipe range
Alternatives
At the foot of a soil stack, use a D571 87.5 degree rest bend with a longer radius to minimise blockage risk
Product Video
Watch the quick overview below for a closer look at positioning and assembly.
