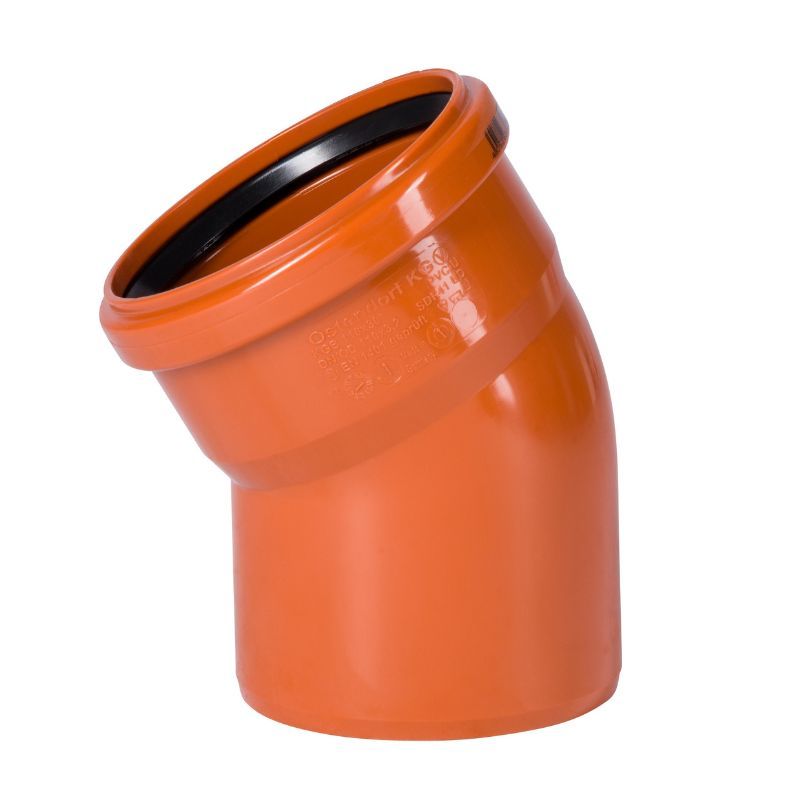

Drainage Bend Single Socket - 30 Degree x 110mm
Product Overview
This 110mm 30 degree single socket drainage bend is one of the most popular underground drainage fittings we supply. It’s ideal for creating smooth directional changes in a 110mm drainage pipe system, with a 30 degree angle that’s perfect for medium adjustments where a sharper or shallower bend is not suitable.
Whether you’re installing new underground pipework or modifying an existing run, this bend offers a reliable way to connect sections of pipe while maintaining flow efficiency.
Key Features
- Fits standard 110mm underground drainage systems
- Single socket design – accepts 110mm pipe at one end
- Pre-chamfered spigot end for direct insertion into another fitting
- 30 degree bend for medium directional changes
- Compatible with a wide range of drainage pipe bends and fittings
Installation Guidance
The socketed end is designed to accept a length of 110mm pipe. If a pipe has been cut to size, chamfer the edge and apply our SG100 lubricant before insertion to ensure a watertight seal.
The pre-chamfered spigot end fits directly into the socket of another fitting, such as a branch, gully, or inspection chamber. This bend can also be combined with other underground drainage bends to achieve the required pipe layout.
Alternative Options
If you’re unsure of the exact angle required, an adjustable bend can be rotated to any angle between 0° and 90°, providing on-site flexibility and helping to avoid delays.
Browse our full range of 110mm drainage pipe and fittings to complete your installation.
