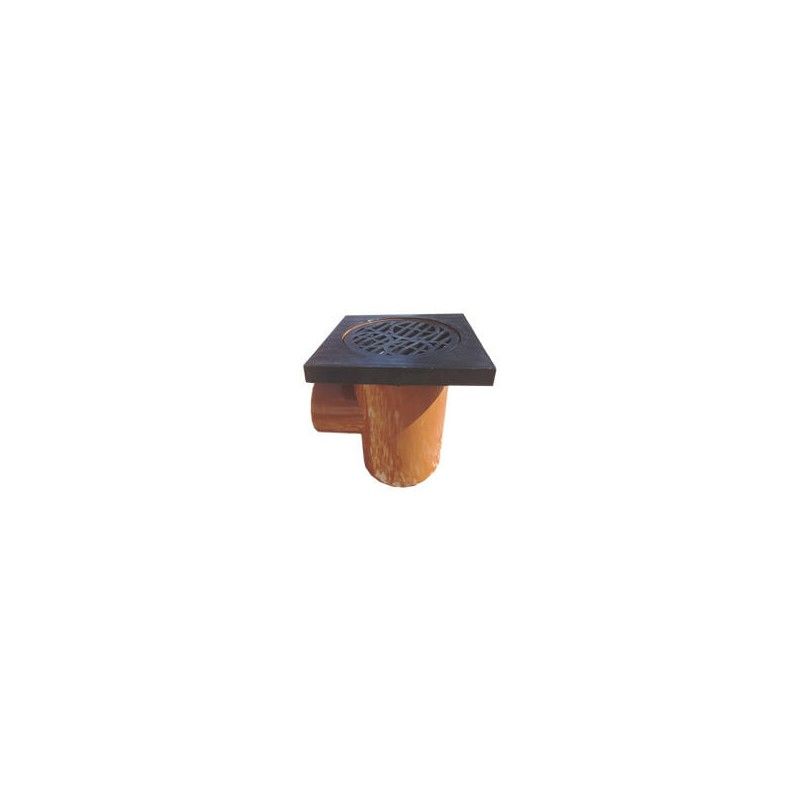

Drainage Bottle Gully Square Grid - 110mm - Pack of 10

In stock
Only %1 left

Click or tap the image to open in fullscreen

Drainage Bottle Gully Square Grid - 110mm - Pack of 10
More Information
Code BG520PK10
£159.25 £132.71 £16.49
Spend another £1500 to pay over time with Klarna

Bottle gullies are usually used externally alongside the house wall when introducing waste or rainwater pipes into a foul drain.

They can also be used on surface water drains to collect rainwater from paved areas.

You should always check with your local authority before connecting rainwater pipes into a foul drain unless this is an existing situation.

The top section of any gully should be at least 150mm below the damp proof course level. The square top of this gully swivels, enabling it to be fitted flush to the wall or paving slab regardless of which direction the gully outlet pipe faces.

Bottle gullies provide a trap that stops foul odours from the underground drainage system from escaping into the air.

This bottle gully is also roddable. There is a central chamber within the body of the gully that can be removed for cleaning and clearing purposes.

An RS4 coupling is required to connect the outlet of the gully to a 110mm pipe. A single socket bend will also connect to the outlet if required.

Please watch our overview video below


We offer our fastest moving 110mm drainage products in a bulk purchase option with extra discounts available for large contractor projects or for merchants interested in stocking and selling our range.

All of our underground drainage parts are made in a terracotta colour to be easily distinguishable from soil and waste pipes when installing or performing maintenance. Some of the fittings in this range feature ring seal socketed ends, which allow for different parts of the system to be connected easily and securely without the requirement of any specialist tools.

The products in this range can be used in conjunction with other ranges such as inspection chambers or soakaway crates in order to complete the full underground drainage system.

All of our 110mm underground drainage products are manufactured to BS EN 1401-1 specification.
