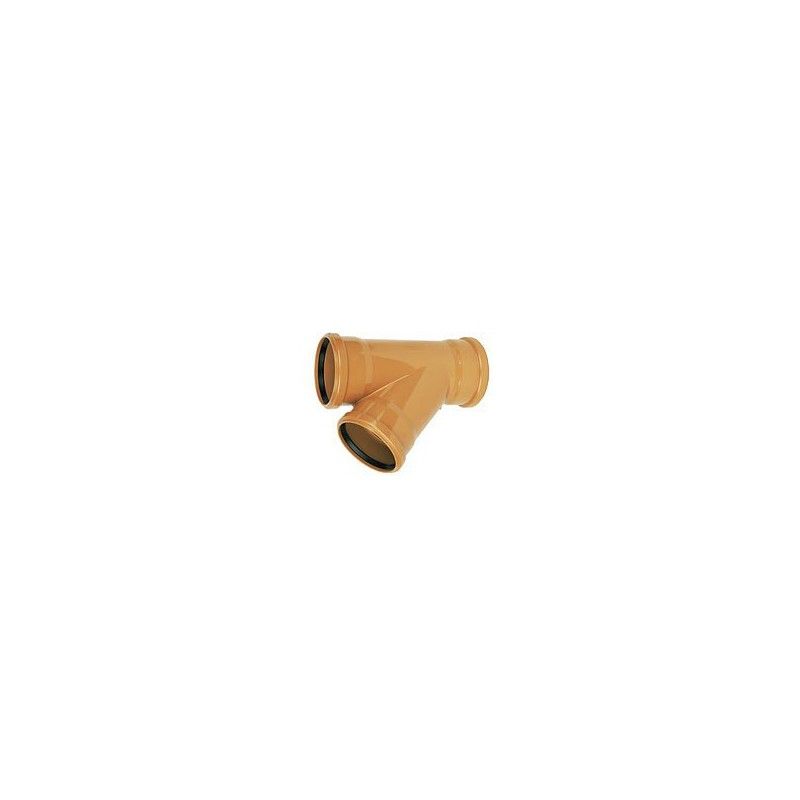

Drainage Junction Triple Socket - 45 Degree x 160mm

In stock
Code
6D211
More Information
Code 6D211
EAN Code 5055149943553
Angle 45 Degree
Brand PBSL Group
Colour Terracotta
Length Overall Length 390mm
Material PVC-u
Style Triple Socket
Size 160mm
£21.16 £17.63
You need to spend another £250.00 to qualify for 2.5% discount.

Junctions in a drainage system are used to connect two pipe runs together. They are available in two angle options, either 45 degrees (often called Y Junctions) or 88 degrees (often called Tee Junctions). Double and triple socket versions of each are available.

When using junctions in a drainage installation it is important to remember the basic principle of drainage design that all parts of the system must be accessible for inspection and cleaning.

160mm Underground Drainage

160mm underground drainage is most commonly used for a collection of flows from the 110mm pipes that flow into it. The range of fittings available in 160mm is generally smaller than the 110mm range, as a run of 160mm drainage is usually more direct and with fewer connections than 110mm pipe.

The fall required in a 160mm pipe depends on the peak flow in litres per second (as with 110mm pipes), but as a rule of thumb the fall it is shallower than that required for a 110mm pipe. The composition of backfill used can also be different, with slightly larger aggregate fill (pea shingle) being allowable for a 160mm pipe installation. Both of these criteria should be checked with local building control prior to installation.

In terms of installation and connecting pipes to fittings, the process is the same as with 110mm pipes. Cut pipes should always be chamfered prior to insertion into a fitting, and seals should be lubricated with silicon spray or grease.

160mm drainage is often still referred to as, reflecting the old comparative imperial size that was used. As this old pipe was commonly made from clay or salt glaze, flexible rubber adaptors are now available to make a straightforward connection from this old material to PVC.
