Drainage Pipe Single Socket - 160mm x 3mtr

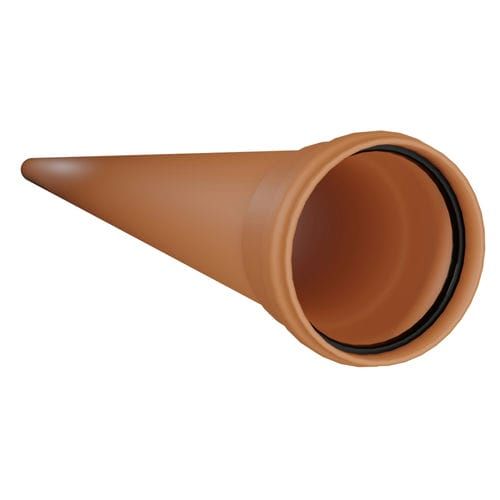

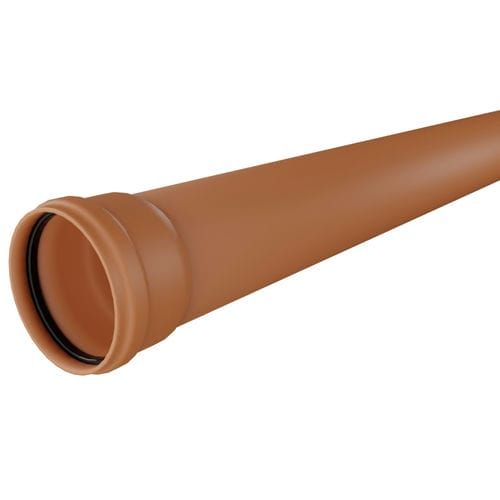

Manufactured to BS4660, our FloPlast single socket 160mm underground drainage pipe has one socketed end incorporating a 160mm ring seal socket and one plain, chamfered end.
This pipe is compatible with all other leading UK manufacturers' 160mm drainage systems.
160mm Underground Drainage
160mm underground drainage is most commonly used for a collection of flows from the 110mm pipes that flow into it. The range of fittings available in 160mm is generally smaller than the 110mm range, as a run of 160mm drainage is usually more direct and with fewer connections than 110mm pipe.
The fall required in a 160mm pipe depends on the peak flow in litres per second (as with 110mm pipes), but as a rule of thumb the fall it is shallower than that required for a 110mm pipe. The composition of backfill used can also be different, with slightly larger aggregate fill (pea shingle) being allowable for a 160mm pipe installation. Both of these criteria should be checked with local building control prior to installation.
In terms of installation and connecting pipes to fittings, the process is the same as with 110mm pipes. Cut pipes should always be chamfered prior to insertion into a fitting, and seals should be lubricated with silicon spray or grease.
160mm drainage is often still referred to as 6”, reflecting the old comparative imperial size that was used. As this old pipe was commonly made from clay or salt glaze, flexible rubber adaptors are now available to make a straightforward connection from this old material to PVC.
