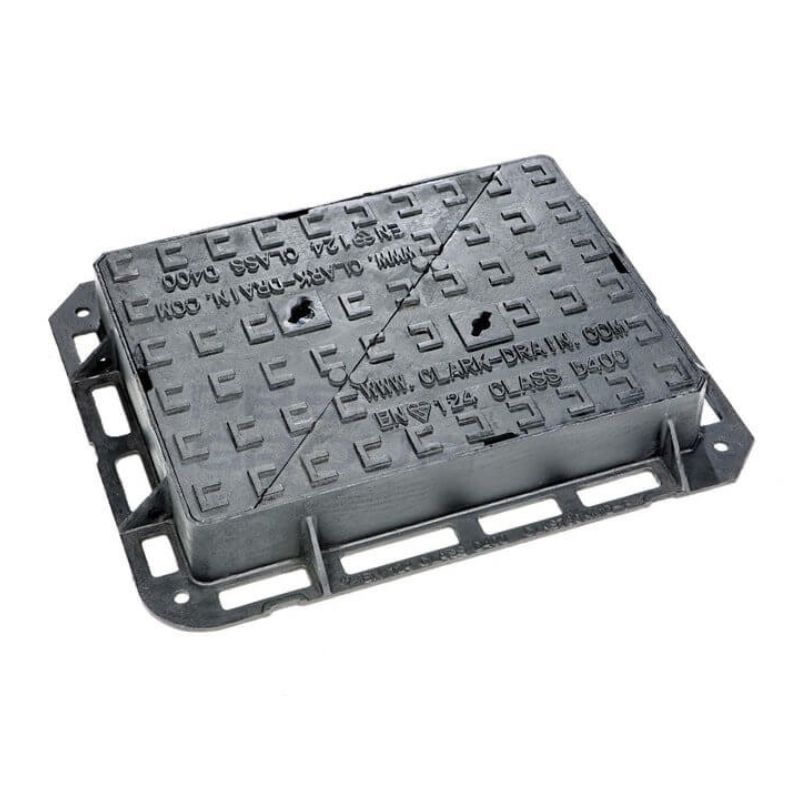

Ductile Iron Manhole Cover - 40 Tonne x 600mm x 450mm

In stock
More Information
EAN Code 5016609108806
Weight (kg) 50.000000
Brand Clark-Drain
Colour Black Bitumen Coated
Material Ductile Iron
Style Ductile Iron
Tonne Loading 40 Tonne
Specification BS EN124:1994
Size 600mm x 450mm Opening
£214.67 £178.89
You need to spend another £250.00 to qualify for 2.5% discount.

Ductile Iron Manhole Cover Frame Heavy Duty 40 Tonne Loading

750mm x 600mm x 100mm Overall Size

600mm x 450mm Clear Opening Size

Non-Rocking 3 Point Cover  - Black Bitumen Coated

Conforms to BS EN 124

What is ductile iron?

Leaving the science aside, the main difference between ductile iron and other types of cast iron is that it is much less brittle. This means that it is more flexible than traditional gray cast iron and generally has a higher tensile strength.

Ductile Iron is the most popular type of iron alloy in areas where impact resistance is important, such as manhole covers. Other common applications include pipes, automotive parts and bollards.


Our ductile iron manhole covers are manufactured by Clark-Drain to BS EN 124-2:2015, which is the standard that specifies where each class of cover can be installed. Our range of ductile cast iron manhole covers can be used for all types of loadings from pedestrian to airports.

If you do not see the exact cover that you need here please do contact us, as Clark-Drain offer an extremely comprehensive range of covers that are not all shown on this page (please note that extended lead times may apply).
