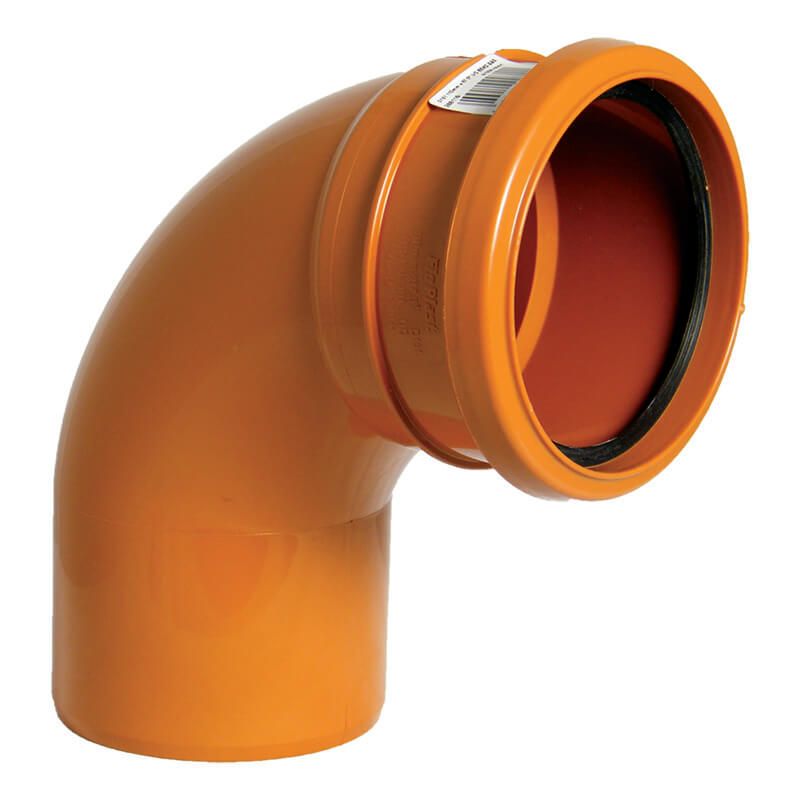

FloPlast Drainage Bend Single Socket - 87.5 Degree x 110mm
In stock
Code
D161
Click or tap the image to open in fullscreen
4 stars
From 5 reviews
| Code | D161 |
|---|
Product Overview
The FloPlast 110mm 87.5 degree single socket bend provides a controlled near-right-angle change of direction on underground runs. Often noted on site as an 110mm 90 degree single socket elbow, it sits within our range of drainage bends and is ideal at the base of rainwater or soil connections where a smooth turn helps maintain flow.
Key Features
- Single socket accepts 110mm pipe; spigot end inserts directly into a receiving fitting
- True 87.5° geometry for reliable flow through near-right-angle changes
- FloPlast push fit joint with captive ring seal for a fast, watertight connection
- Compatible with standard 110mm underground fittings and other drainage pipe bends
Installation Guidance
- Chamfer any cut pipe and apply SG100 lubricant before inserting into the socket to achieve a secure seal
- Seat the spigot fully in the receiving fitting and confirm alignment and fall before backfilling
- For pipe runs and additional fittings, see our 110mm drainage pipe range
Alternative Options
- Need pipe-to-pipe on both sides? Choose the matching 87.5° double socket bend
- Unsure of the exact angle? Use an adjustable bend that rotates from 0° to 90°
