FloPlast Drainage Bottle Gully Circular Grid - 110mm
In stock
Code
D510
Click or tap the image to open in fullscreen
5 stars
From 4 reviews
| Code | D510 |
|---|---|
| EAN Code | 5055149907524 |
| Weight (kg) | 1.140000 |
| Brand | FloPlast |
| Colour | Terracotta |
| Diameter | 110mm |
| Material | PVC-u |
| Pack Size | Single |
| Guarantee | 10 Year Manufacturer Guarantee |
| Specification | BS EN 1401-1 |
| System Size | 110mm Diameter |
Product Overview

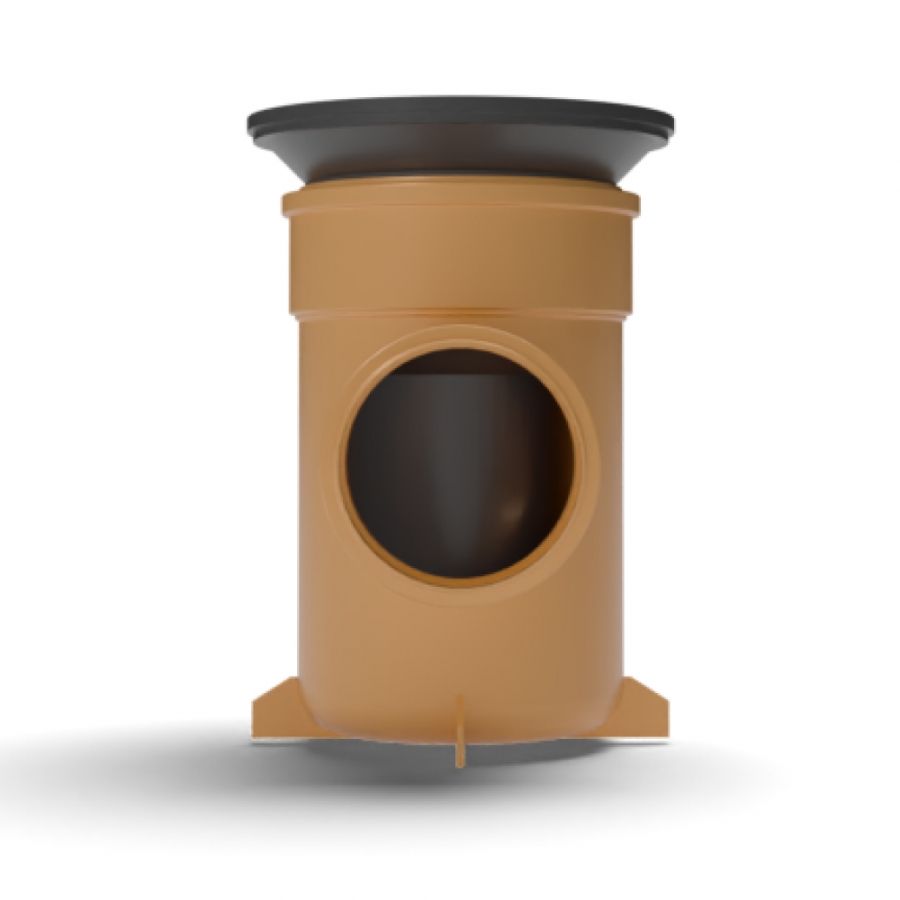

The FloPlast 110mm bottle gully with a circular grid provides a trapped connection for waste and surface water into underground drainage while preventing smells from escaping. This compact, roddable bottle gully is commonly positioned against an external wall to take kitchen or utility waste into a foul drain, and it integrates with standard 110mm systems.
Key Features
- FloPlast bottle gully with circular top grid

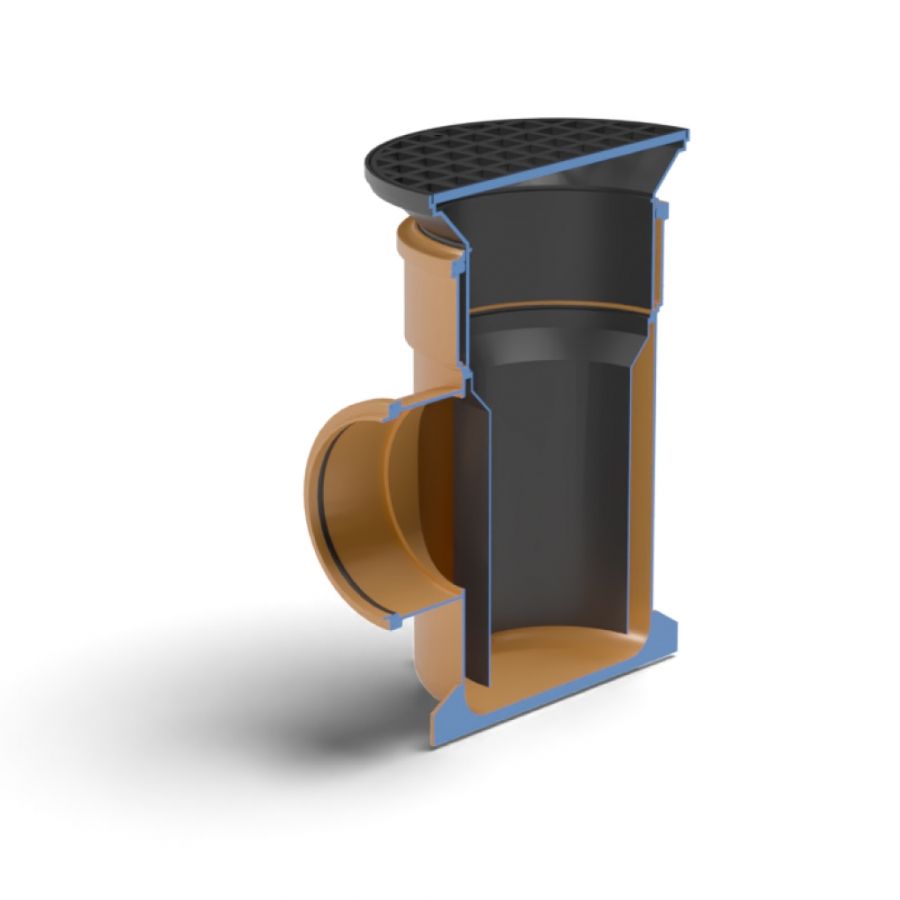

- Trapped outlet stops odours returning from the drain

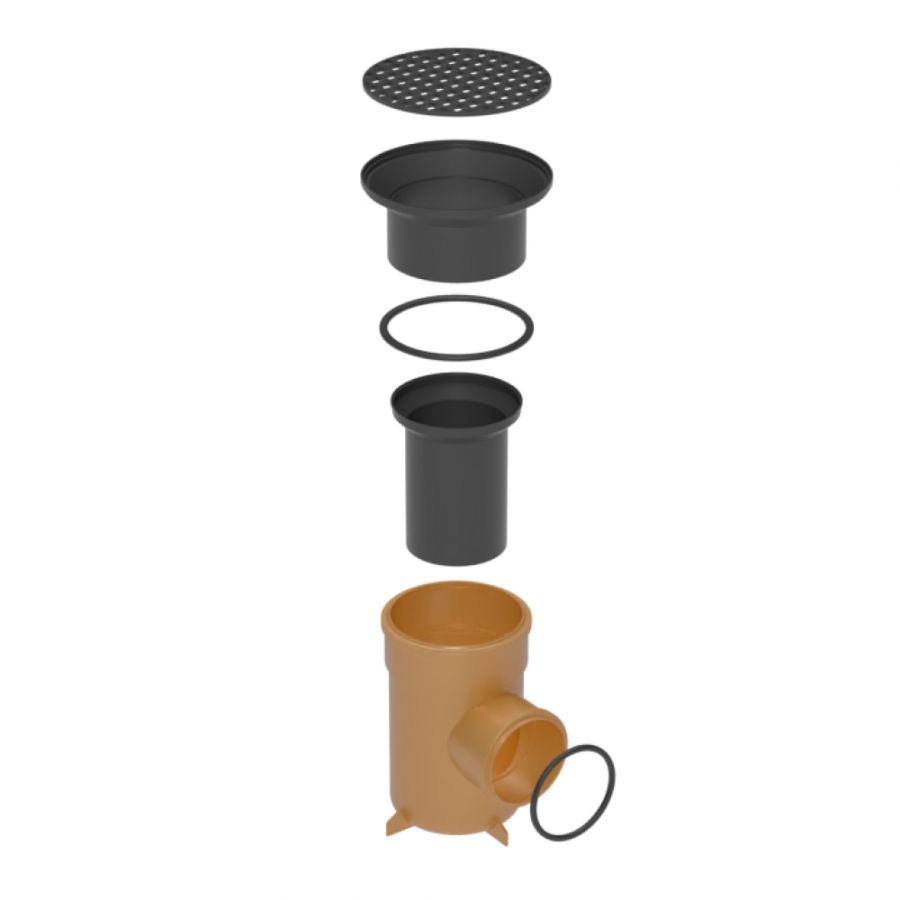

- Top access for rodding and a removable internal chamber for straightforward cleaning
- Waste pipes terminate below the grid; the grid can be cut to accept waste pipe entries
- Connects to standard 110mm underground drainage fittings
Installation Guidance
- Set the gully so the top finishes at paving level and the trap sits below the damp proof course as required
- Terminate waste pipes beneath the grid before entering the gully
- Connect the outlet to a 110mm run using the appropriate fitting; for pipe lengths and accessories, see our 110mm drainage pipe range
- Check local authority guidance before connecting rainwater into a foul drain unless it is an existing arrangement
Maintenance
- Lift the circular grid for top access
- Remove the internal chamber to clear silt and debris, then flush and rod as required
Related Components
- Build out your system with inspection chambers and soakaway crates where needed
