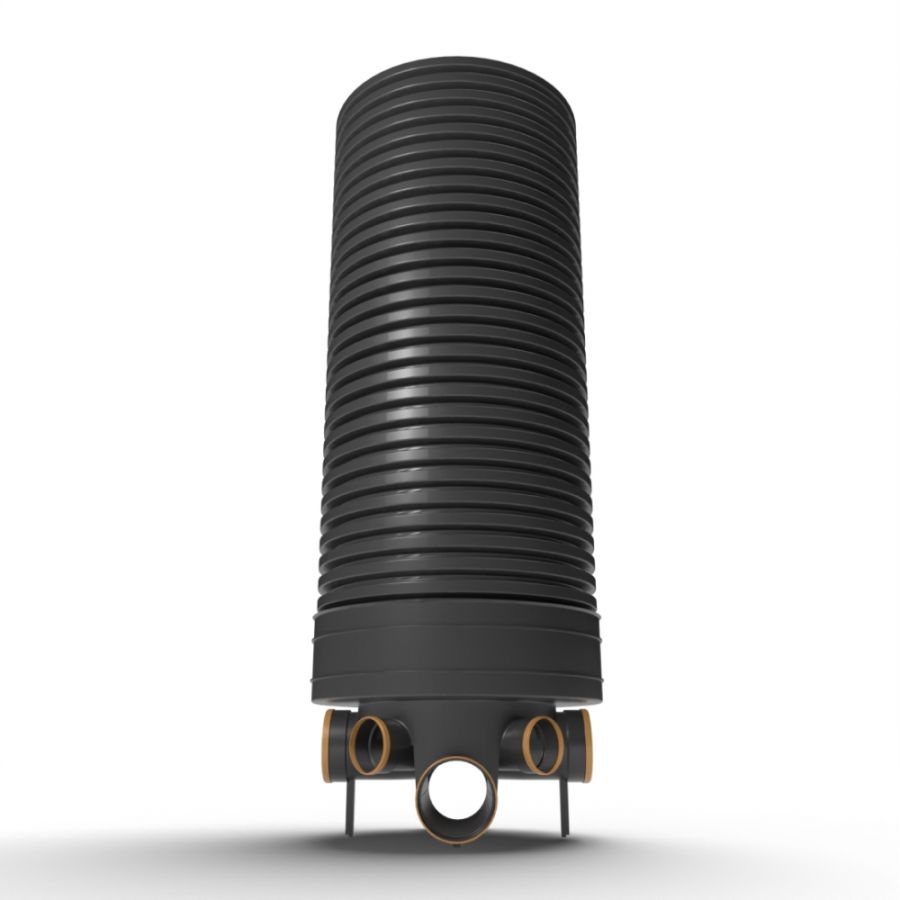

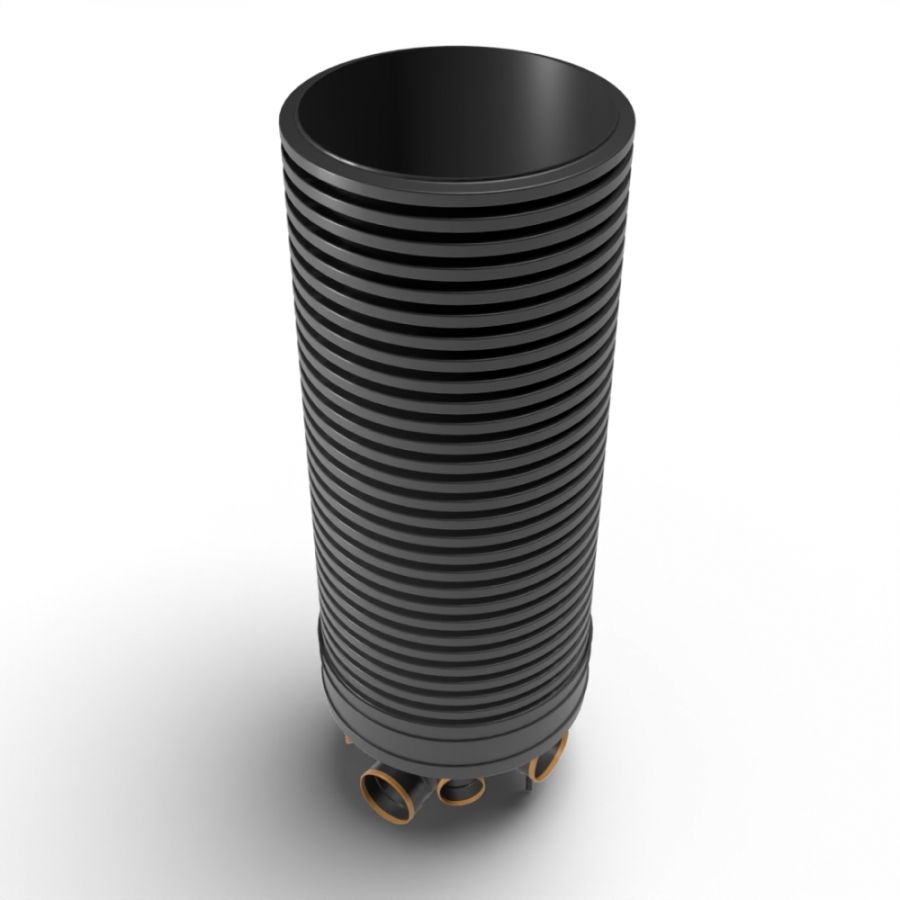

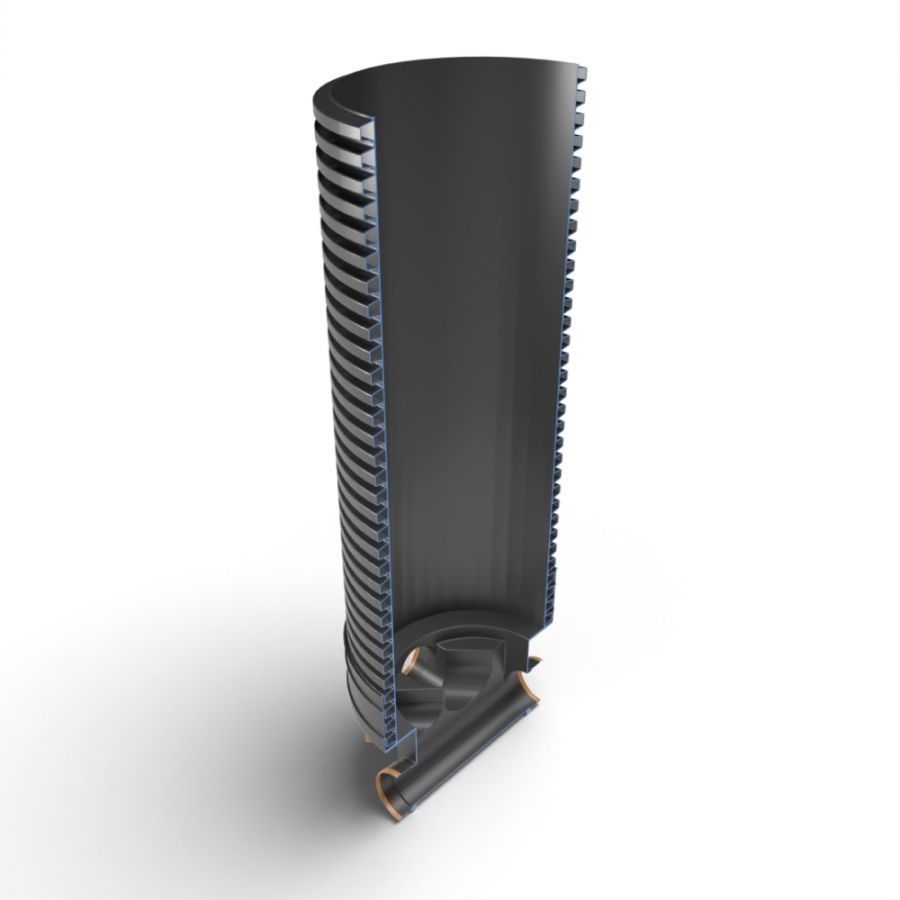

Inspection Chamber Set - 600mm Diameter x 2350mm Depth with 160mm Channel & 110mm & 160mm Inlets
In stock
Only %1 left
Code
AIC16060024SP
This inspection chamber has a diameter of 600mm and is 2350mm deep. It features a main channel of 160mm, an additional two 160mm inlets at 90 degrees and 270 degrees and another two 110mm inlets at 135 degrees and 225 degrees.
_x000D_Our inspection chambers allow access to drain and sewer systems for testing, inspection, maintenance and cleaning. These actions can be performed from the surface and should not require entrance into the chamber itself.
_x000D_KEY FEATURES & BENEFITS OF THIS PRODUCT
_x000D_- _x000D_
- Quick and simple installation _x000D_
- Arrives factory assembled in one piece _x000D_
- Design life of 60 years _x000D_
- Lightweight and requires no specialist equipment to lift _x000D_
- Compatible with most UK twinwall pipe systems _x000D_
- Granular backfill _x000D_
- Complies with EN 13598-2 (2009), SfA7 and Building Regulations Part H1 _x000D_
- 2 x 160mm & 2 x 110mm inlets _x000D_
To view Turtle's installation guide for inspection chambers, click here.
