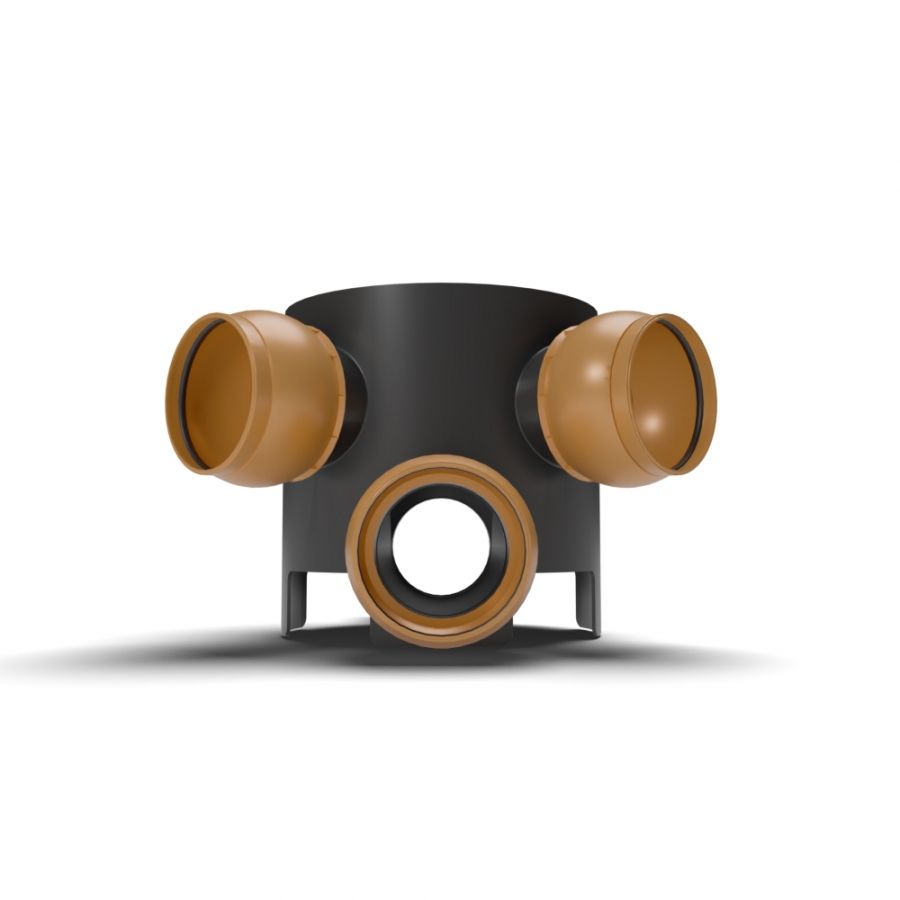

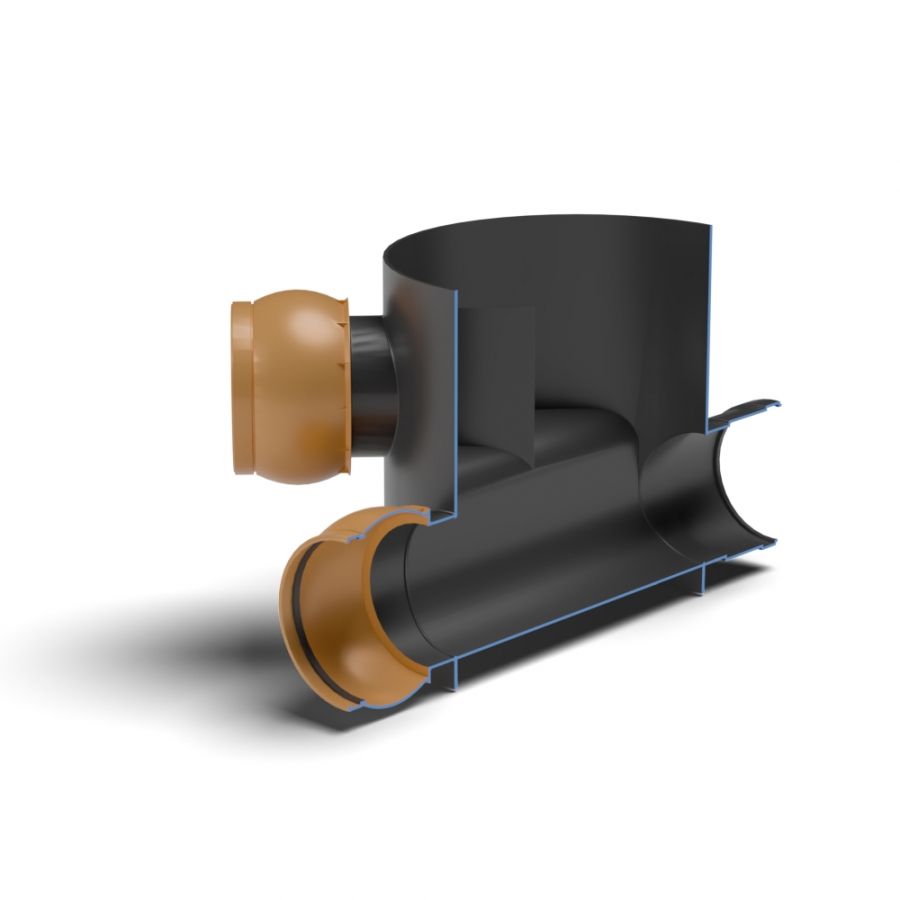

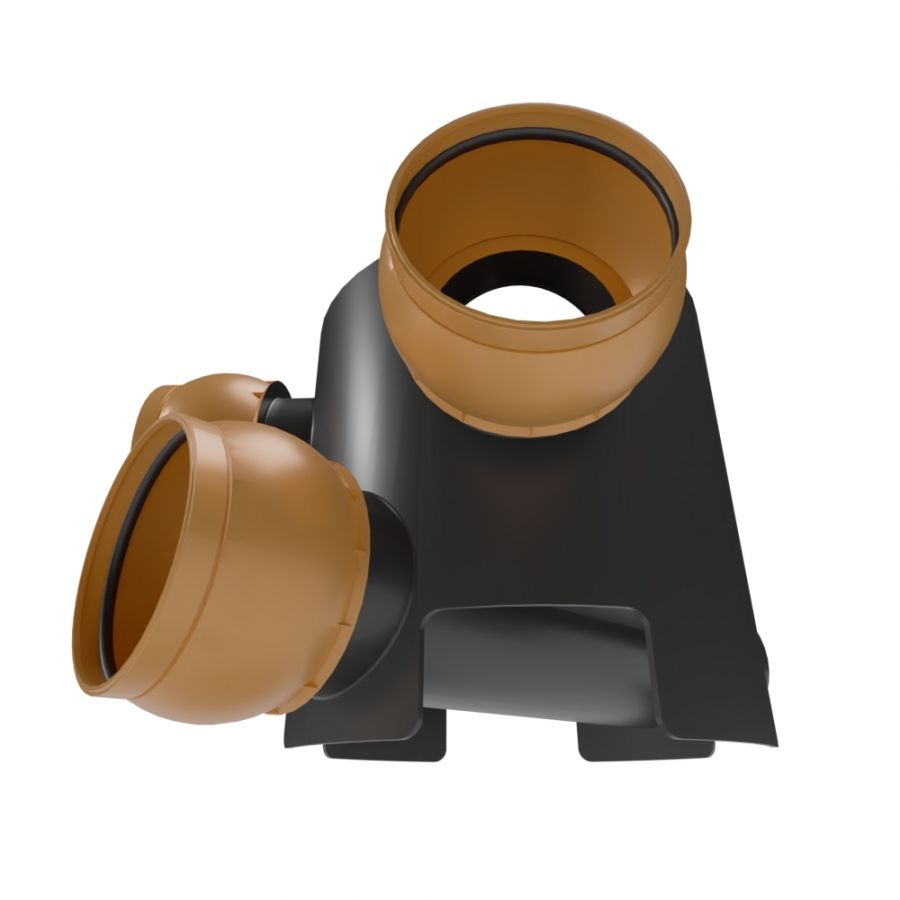

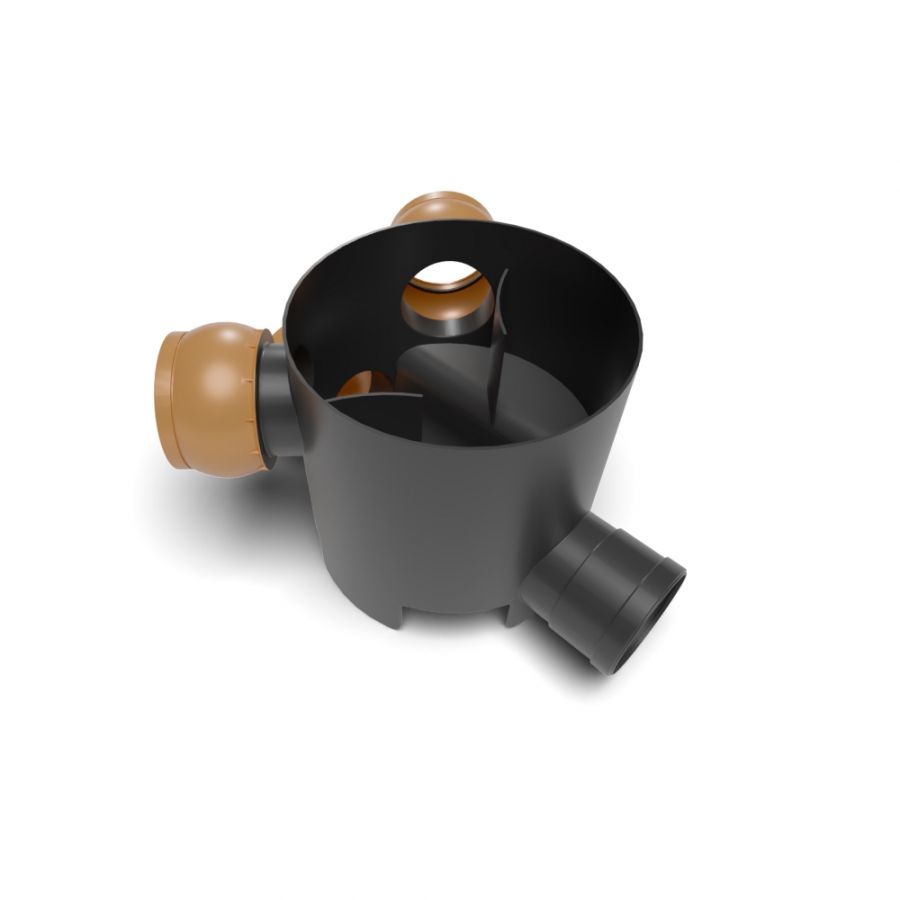

Inspection Chamber Base 3 Adjustable Inlets - 45 Degree x 300mm Diameter
|Colour||Black/ Terracotta Sockets|
|Chamber Type||3 Adjustable Inlets|
|Dimension||297mm (H) x 306mm (Chamber Diameter) x 510mm (Length including connections)|
|Guarantee||10 Year Manufacturer Guarantee|
|Inlet Angle||45 Degree|
This chamber base comes in two basic options - either three or five inlets.
On the three inlet option you can also choose between having the two side branches set either at 45 degrees or at 90 degrees to the main channel. On the five inlet option, two of the inlets are at 45 degrees and two are set at 90 degrees to the main channel.
Every inlet and the outlet features an adjustable ring seal socket that can be adjusted by 10 degrees in any direction. This is particularly useful when the connecting pipes are not perfectly aligned, often saving the cost of an additional bend.
These bases should be used in conjunction with our D820 and D822 side risers.
Our adjustable bases are all manufactured by FloPlast.
Inspection Chamber Components
Whilst most customers generally order inspection chambers as sets (base, risers and cover) there are often occasions when it is easier to order the chamber in its individual components. This allows for greater flexibility on site, for example where the final drainage layout is likely to differ from that suggested in the plans, or where the finished ground levels are subject to change.
All of these components can be interchanged with the relevant chamber sets, so if you are simply looking for an additional riser then you are in the right place! Just make sure that the manufacturers of each are the same, as chamber bases and risers from different manufacturers are rarely interchangeable.
All of our inspection chamber components are sourced from reputable supplier partners who are leaders in the UK market such as ClarkDrain and FloPlast.
Inspection chambers are a vital part of the underground drainage system, whether it be residential or commercial. They are necessary to provide access into various key points of the underground drainage system. Such access points are used for maintenance tasks such as inspecting and testing pipes to ensure that effluent is flowing correctly and to clear any potential blockages with drain rods or high pressure jetting as required.
