Inspection Chamber Complete Set Internal Use - 300mm Diameter
|Brand||FloPlast and Clark-Drain|
|Colour||Black with Recessed Steel Cover|
|Material||PVC/ Steel Cover|
|Chamber Type||Internal Use|
|Dimension||Height to Top of Cover 760mm|

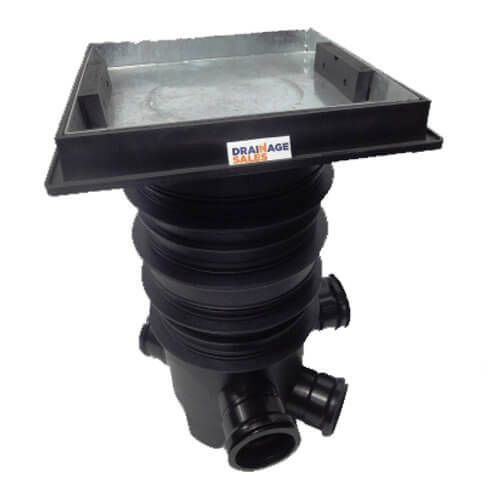

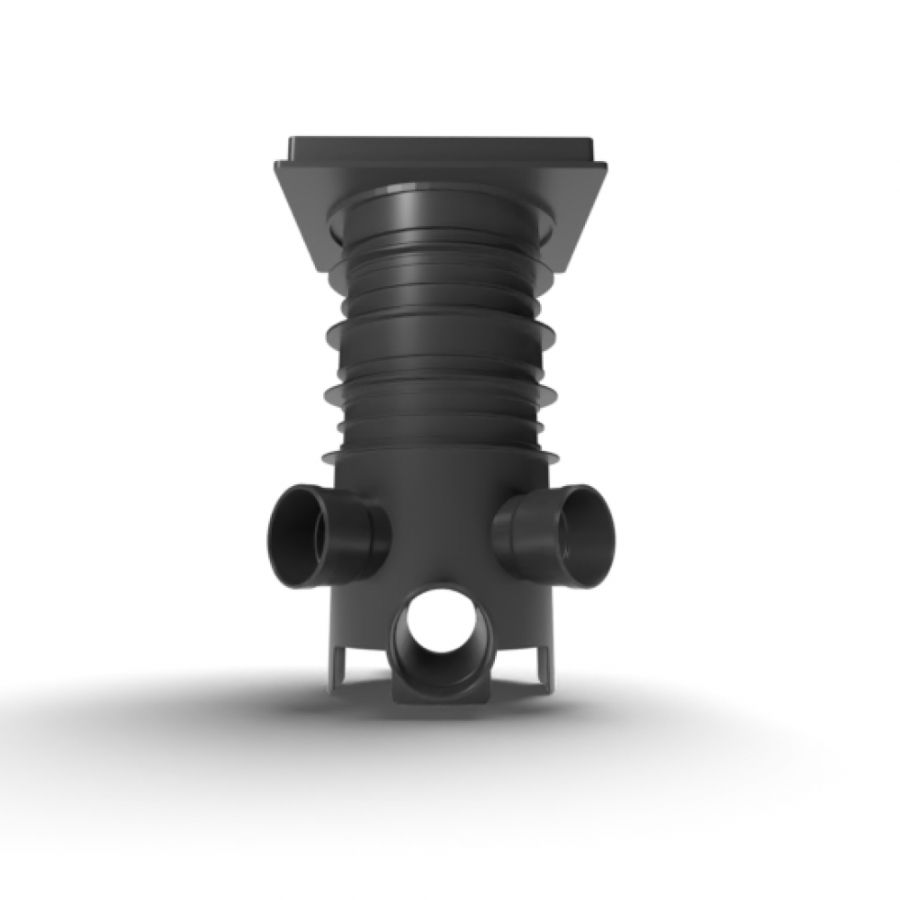

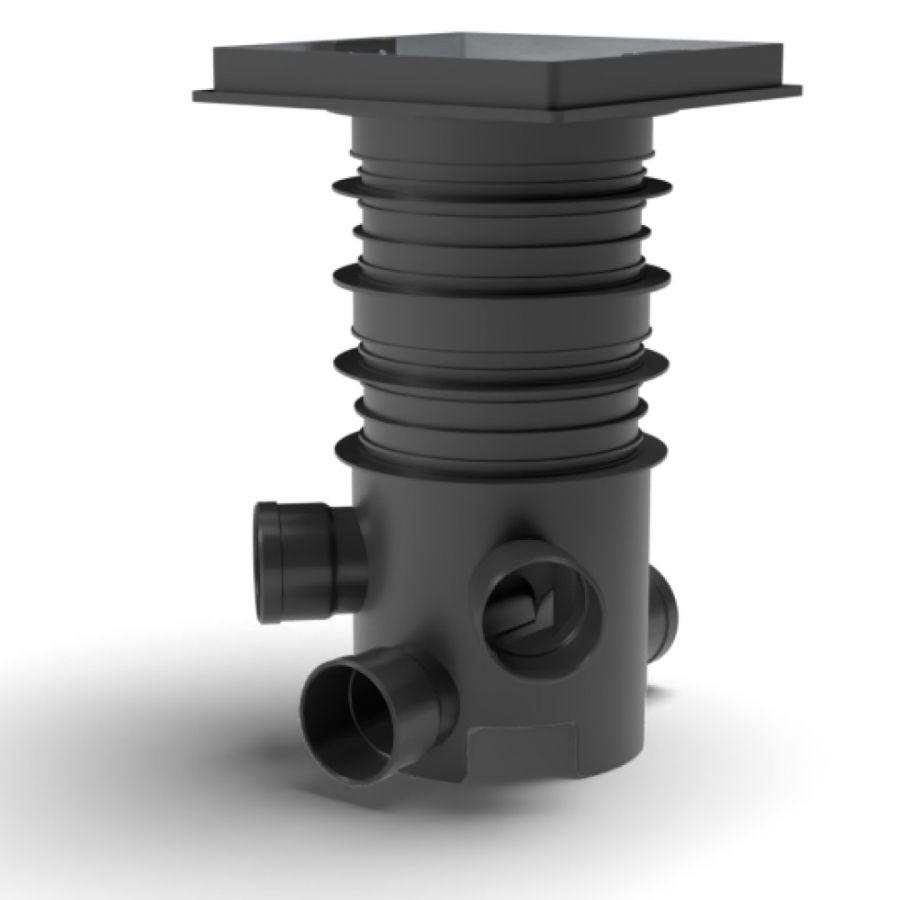

300mm Mini Inspection Chamber set for internal use

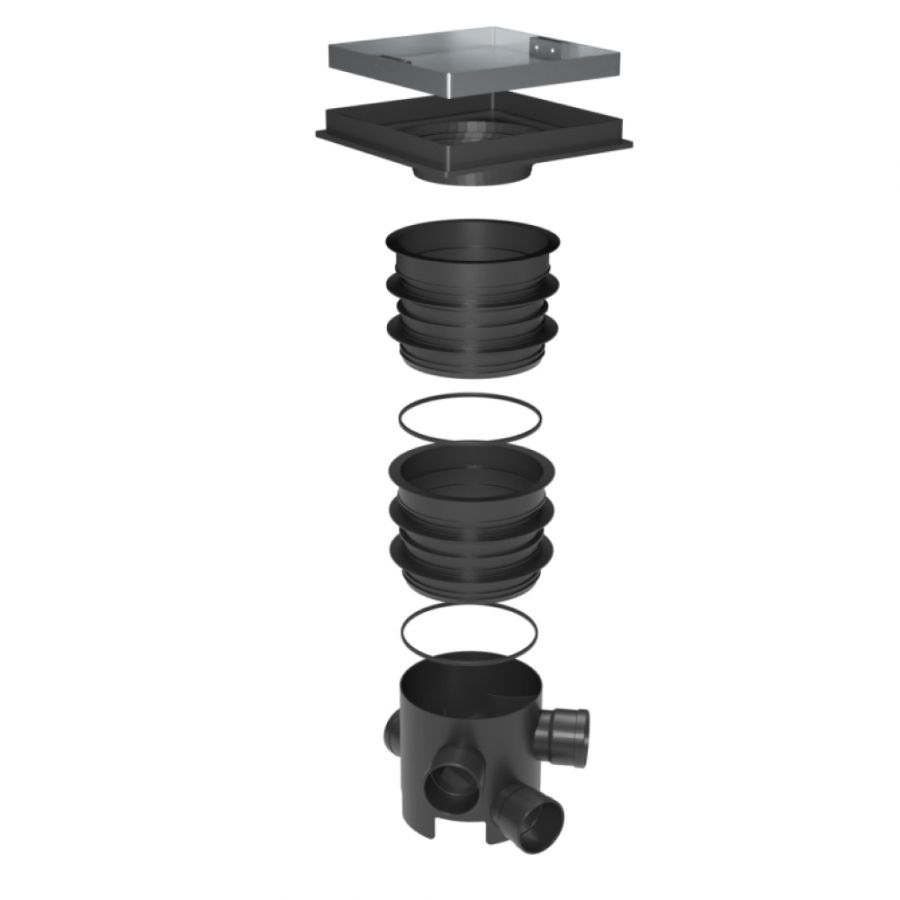

This chamber set includes all of the components required to form a 300mm mini inspection chamber that can be used inside a premises - one base section, two 200mm sectional risers and a sealed, 43.5mm deep recessed square PVC cover and frame which can be filled with screed or concrete. The neoprene seals in the cover prevent any unwanted odours from escaping the drainage system.

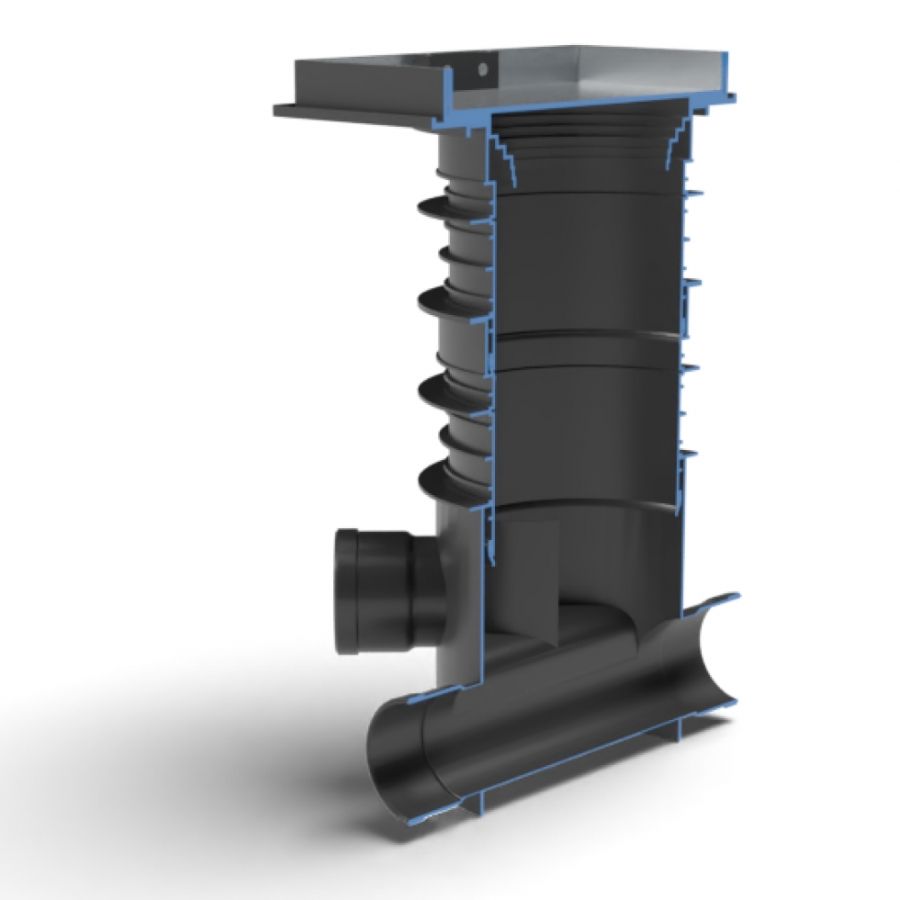

The overall depth of the chamber from the invert level to the top of the manhole cover is 760mm. If you need to make small adjustments to the height then the sectional risers may be cut to size using a standard fine-toothed saw.
The main channel of the base is left open and the side inlets are blanked off with integral blanking plugs - simply remove the blanking plug by pushing it out from within the base to open and use the side inlets.
The cover has a 5 Tonne load rating.
For a quick overview of this product please watch the brief video below;
For a more in-depth description guide to the use of mini access chambers please take a look at the more detailed information video below.
Inspection Chamber Sets
Our chamber sets represent the most popular configurations of bases, risers and manhole covers based on our experience of selling these products over a great many years. We only source these chamber components from market leading suppliers in this field such as ClarkDrain, FloPlast and Marley.
Inspection chamber sets are ideal for those customers who have a good idea of the finished height of the chamber required and the type of manhole cover that will be needed. Final alterations can still be made on site by trimming the risers if required.
On new build sites and extensions, inspection chamber details are usually shown on the plans, making the purchasing of chambers sets a relatively straightforward proposition. As we also sell all of the components individually is it still easy to make amendments (for example adding additional risers) should the chamber specification need to be changed during the build process.
Inspection chambers are a vital part of the underground drainage system, whether it be residential or commercial. They are necessary to provide access into various key points of the underground drainage system. Such access points are used for maintenance tasks such as inspecting and testing pipes to ensure that effluent is flowing correctly and to clear any potential blockages with drain rods or high pressure jetting as required.
