Lite Aqua Channel Drain Galvanised Grating Class A15 - 1mtr
Click or tap the image to open in fullscreen
| Code | AQ10DCH1AGS8 |
|---|---|
| EAN Code | 5056919000834 |
| Weight (kg) | 1.600000 |
| Brand | Polycon |
| Colour | Galvanised Steel (Grating) |
| Length | 1mtr |
| Width | 120mm |
| Material | Polyethylene with Steel Grating |
| Pack Size | Single |
| Tonne Loading | 1.5 Tonne |
| Dimension | 1000mm (L) x 120mm (W) 55mm (H) |
| Guarantee | 1 Year Manufacturer Guarantee |
| System Size | 120mm |
| Height (mm) | 55mm |

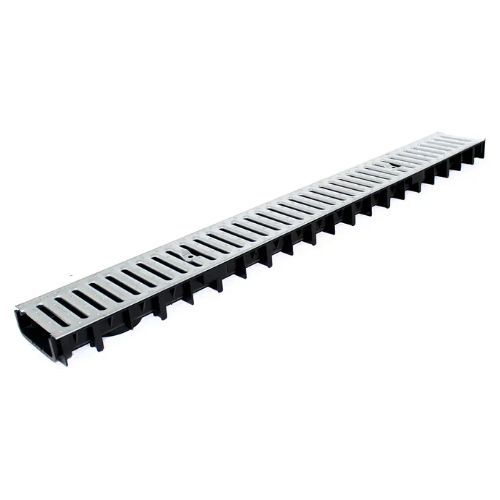

These lite aqua channel drains from Polycon carry a class A15 load rating, meaning that they can support loads of up to 1.5 tonnes. This makes them perfect for use on garden patios, walkways or other outdoor areas that will be subject to light foot traffic. The galvanised steel grating provides a minimal yet aesthetically pleasing finish.
This channel drain has an overall depth of 55mm, is 1000mm in length and 115mm wide. Each slot on the steel grating is 8mm thick.
Lite aqua channel drains are easy to connect with each other as well as corner units and end caps are easy to secure. All joins in this system are 100% watertight, leaving no connection gaps. The drainage outlet is located on the underside of the channel.
PLEASE NOTE - The associated bolt and bar for this product is sold separately.
