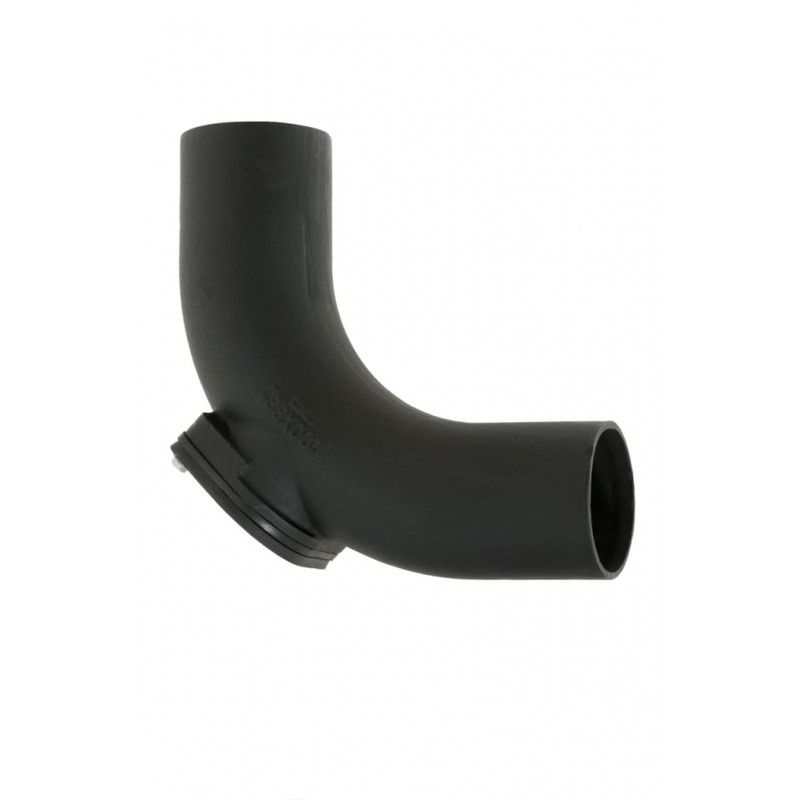

Mech 416 Cast Iron Soil Long Rad Bend - 88 Degree x 150mm
In stock
Code
MS6011
Click or tap the image to open in fullscreen
| Code | MS6011 |
|---|---|
| EAN Code | 0755907217739 |
| Angle | 88 Degree |
| Brand | Hargreaves Mech 416 |
| Colour | Matt Black Epoxy Coated |
| Diameter | 150mm |
| Material | Cast Iron |
| Pack Size | Single |
| Life Expected | 100 Years + |
| Specification | BS 416 (part 2) |
| System Size | 150mm |
This 88 degree long radius bend is used to create a 90 degree change of direction in a soil pipe. It is most commonly used on rainwater systems. The 88 degree angle of the bend is used to create a fall of 2 degrees within the system, promoting a self-cleansing flow.
It is available in 100mm and 150mm size options.
