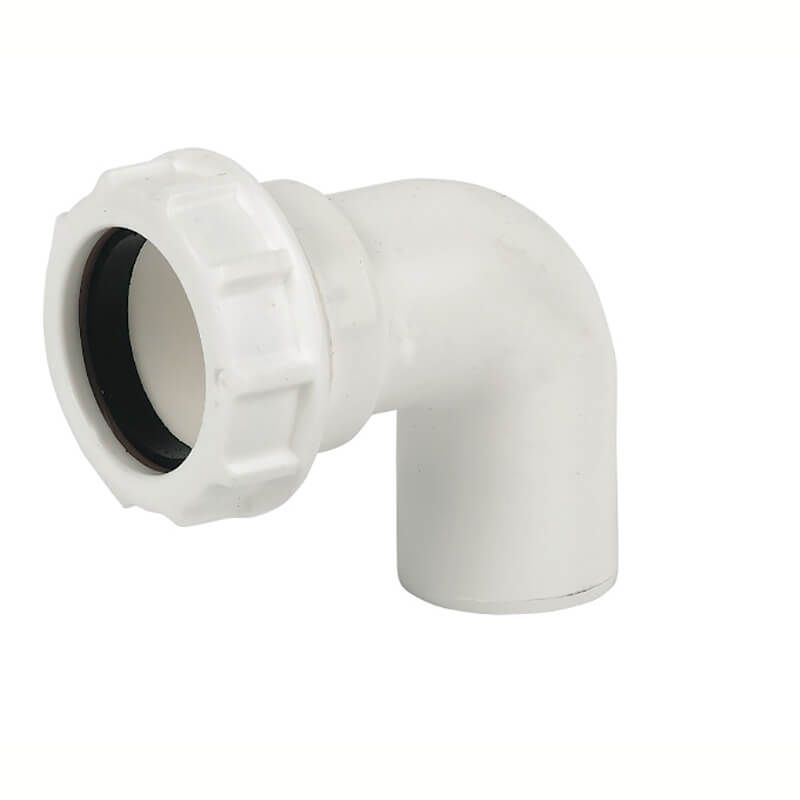

Multi Fit Compression Waste Bend Conversion - 90 Degree x 32mm

In stock
Code
WC26

Click or tap the image to open in fullscreen

Multi Fit Compression Waste Bend Conversion - 90 Degree x 32mm
Multi Fit Compression Waste Bend Conversion - 90 Degree x 32mm
More Information
Code WC26
£3.04 £2.53 £3.04

Swivel bends are used to create a tight radius 90 degree change of direction in a waste pipe system. They are also often referred to as M and F bends or spigot bends. They have a long tail that is usually inserted into the socket of another fitting.

This fitting is available in 32mm and 40mm size options.

This compression waste system is manufactured in the UK to BS EN 1451. It is commonly used to connect waste pipes of differing materials or those made by different manufacturers.

When making a compression joint, cut the pipe square and remove any burrs. Unscrew the nut from the fitting and remove it along with the washer and the rubber seal. Place these three components over the end of the pipe – first the nut, then the washer followed by the seal. The dished side of the rubber seal should face away from the nut and towards the fitting. Push the pipe into the fitting as far as it will go, slide the seal and washer forward into position in the fitting and tighten the nut.

The joint can be taken apart again if required, but always check that the rubber seal has not been damaged in any way as this will cause the joint to leak.

Click here to watch our video showing how to assemble a compression waste joint.
