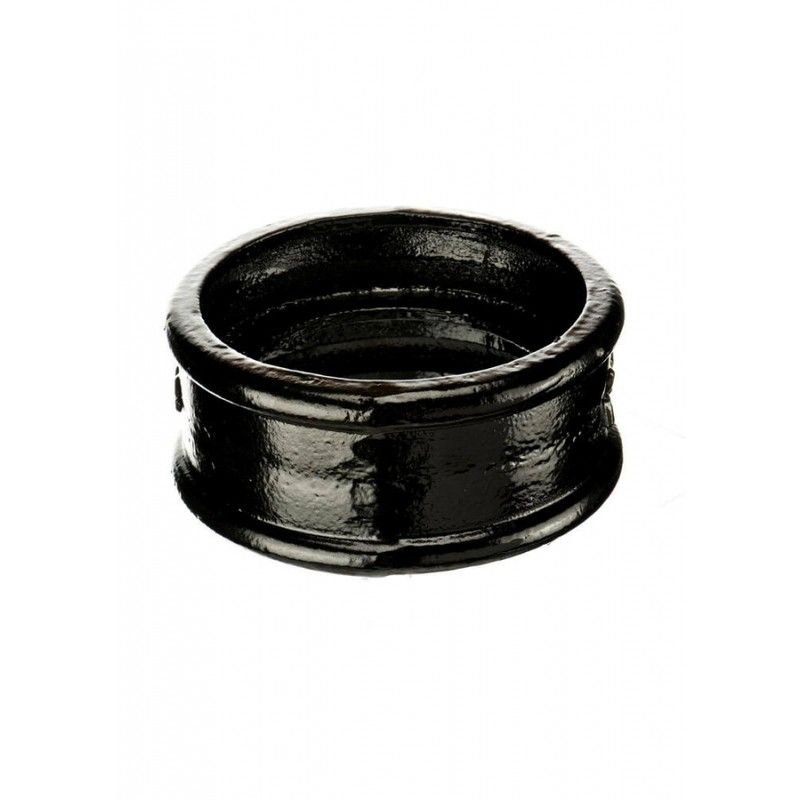

Push Fit Cast Iron Plain Soil Push Fit Socket - 100mm
Click or tap the image to open in fullscreen
| Code | TX4016 |
|---|---|
| EAN Code | 0691208238717 |
| Brand | Hargreaves Traditional Express |
| Colour | Black |
| Diameter | 100mm |
| Material | Cast Iron |
| Pack Size | Single |
| Life Expected | 100 Years + |
| Specification | BS 416/2 (Cast Iron) and BS EN 681 (Gaskets) |
| System Size | 100mm |
This push fit plain socket is used to join two cast iron soil pipes together, or to connect a pipe to a fitting.
Each vertically installed pipe in any soil stack should always include an eared socket to give support and stability to the system. Plain sockets are usually installed on branch arms to preserve the authentic appearance of the system.
All of our push fit cast iron soil fittings are treated to a factory black two-pack gloss paint finish. The whole range is manufactured in grey cast iron to BS EN 1561.
This soil pipe range is particularly well-suited to installations in public buildings, listed buildings and conservation projects. It is 100% recyclable. Click here to view or download full installation instructions.
