Push Fit Cast Iron Soil Branch With Rear Boss - 92.5 Degree x 100mm
Code | TX4039B |
---|---|
EAN Code | 0691208238793 |
Angle | 92.5 Degree |
Brand | Hargreaves Traditional Express |
Colour | Black |
Material | Cast Iron |
Style | With Rear Boss |
Life Expected | 100 Years + |
Specification | BS 416/2 (Cast Iron) and BS EN 681 (Gaskets) |
Orientation | Rear |
Size | 100mm |

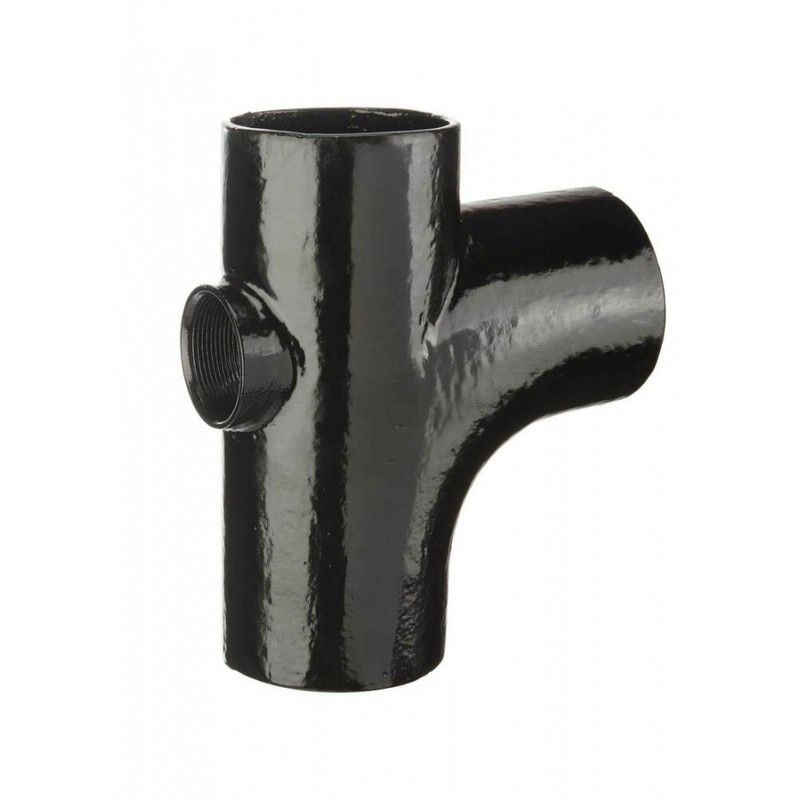

This 92.5 degree branch incorporates a waste boss at the rear that allows a waste pipe to be connected into the soil system. The boss is already open and tapped with a 2” BSP thread.
The 92.5 degree angle of the branch gives a 2.5 degree fall which promotes a self-cleansing flow within the soil pipe.
As our push fit cast iron soil pipes and fittings are all plain ended, sockets are required to connect this branch to a pipe.
All of our push fit cast iron soil fittings are treated to a factory black two-pack gloss paint finish. The whole range is manufactured in grey cast iron to BS EN 1561.
This soil pipe range is particularly well-suited to installations in public buildings, listed buildings and conservation projects. It is 100% recyclable. Click here to view or download full installation instructions.
Pushfit Cast Iron Soil System
Our Traditional Express cast iron soil pipe system uses two modern EPDM rubber seals within the sockets, enabling fast and easy joints to be made.
Unlike the traditional lead-poured joint system of old, push fit cast iron soil pipes need no specialist training to install. The only system tools required are the TX0002 gasket relaxing tool and some TX0001 lubricant.
Cast iron pipe is strong, durable and it has excellent sound-deadening qualities. Correctly installed, it will last for the lifetime of the building.
