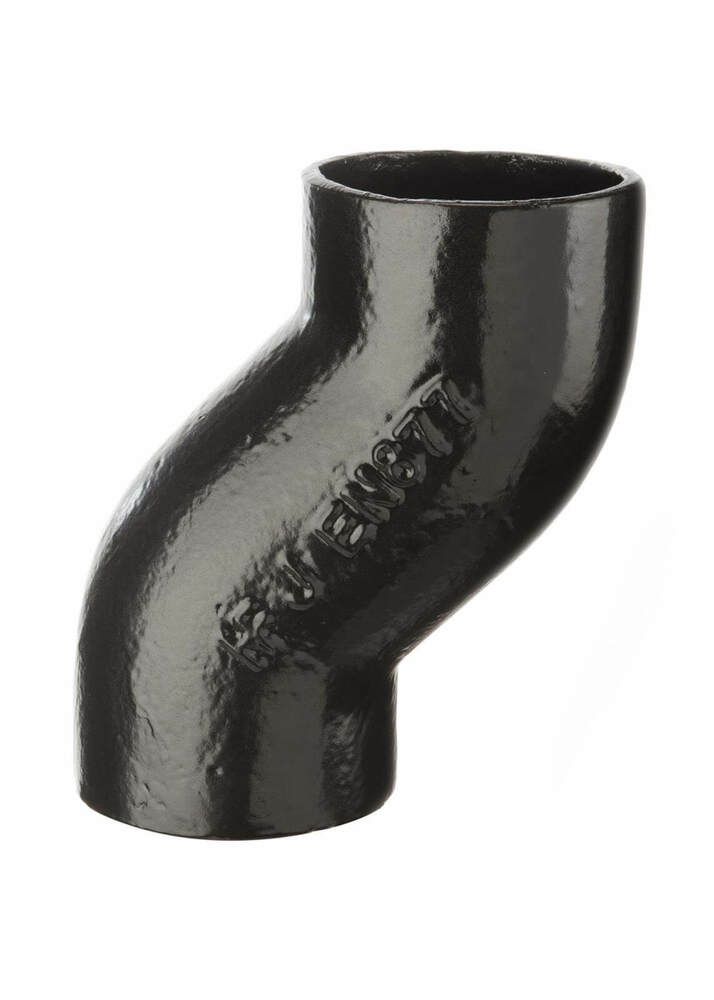

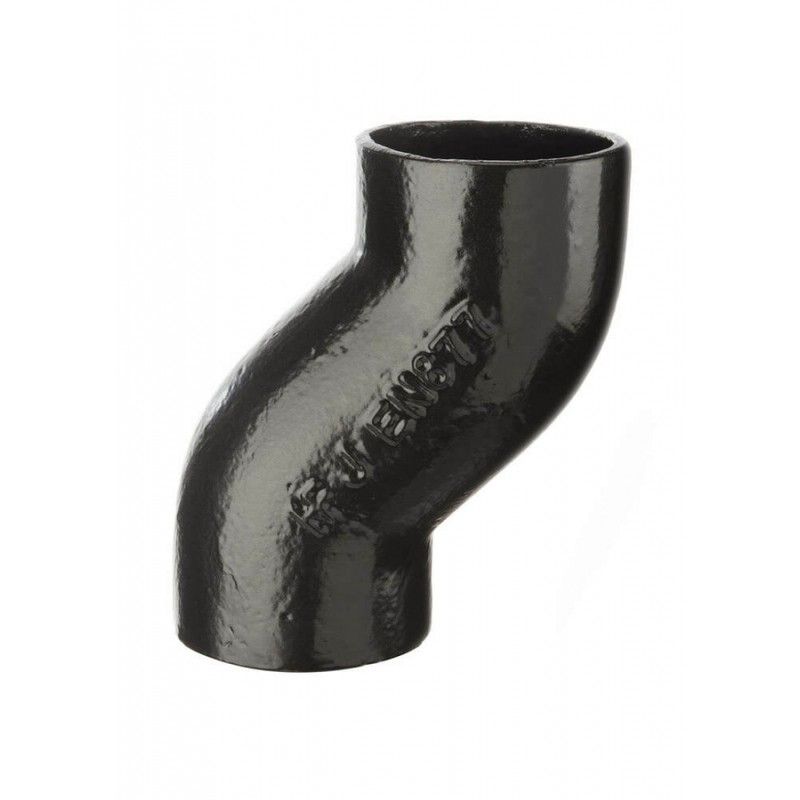

Push Fit Cast Iron Soil Offset Bend - 75mm Projection x 100mm

In stock
Code
TX4044
More Information
Code TX4044
EAN Code 0691208238830
Brand Hargreaves Traditional Express
Colour Black
Projection 75mm
Material Cast Iron
Life Expected 100 Years +
Specification BS 416/2 (Cast Iron) and BS EN 681 (Gaskets)
Size 100mm
£46.56 £38.80
You need to spend another £250.00 to qualify for 2.5% discount.
All Cast Iron orders under £750 incur a one-off manufacturers' delivery charge of £35 + VAT. Orders over £750 are delivered free of charge to mainland UK.

This fixed projection offset bend is usually used to create a vertical offset, or swan neck as it is sometimes called, within the soil stack. This offset bend is available in 75mm and 130mm projection options.

As our push fit cast iron soil pipes and fittings are all plain ended, sockets are required to connect this bend to a pipe.

All of our push fit cast iron soil fittings are treated to a factory black two-pack gloss paint finish. The whole range is manufactured in grey cast iron to BS EN 1561.

This soil pipe range is particularly well-suited to installations in public buildings, listed buildings and conservation projects. It is 100% recyclable. Click here to view or download full installation instructions.

Pushfit Cast Iron Soil System

Our Traditional Express cast iron soil pipe system uses two modern EPDM rubber seals within the sockets, enabling fast and easy joints to be made.

Unlike the traditional lead-poured joint system of old, push fit cast iron soil pipes need no specialist training to install. The only system tools required are the TX0002 gasket relaxing tool and some TX0001 lubricant.

Cast iron pipe is strong, durable and it has excellent sound-deadening qualities. Correctly installed, it will last for the lifetime of the building.
