175mm White Fascia Board - 18mm x 5mtr
Click or tap the image to open in fullscreen
| Code | M175 |
|---|---|
| EAN Code | 5055149912597 |
| Weight (kg) | 7.700000 |
| Brand | PBSL Group |
| Colour | White |
| Dimension | 175mm (H) x 18mm (D) x 5000mm (L) with 36mm Bottom Return Leg |
| Guarantee | 20 Years Manufacturers |
| Length | 5mtr |
| Material | PVC-ue |
| Pack Size | Single |
| Specification | BS EN 13245-2, BS 7619 & BBA Approved |
| Fire Rating | Class 2Y |
| System Size | 175mm |
| Thickness | 18mm |
*** This product is discontinued, please see our alternative product ***
Our 18mm replacement fascias are so called because they need no backing board - they are a straight replacement for old timber fascias as they are nailed directly onto the rafter feet.
The name is a little misleading as nowadays these boards are most commonly used on new build projects.
Available in sizes from 150mm to 250mm, replacement fascias should be fixed using 2 x 65mm polytop nails at each rafter (maximum spacing 600mm for white and 400mm for all other colours).

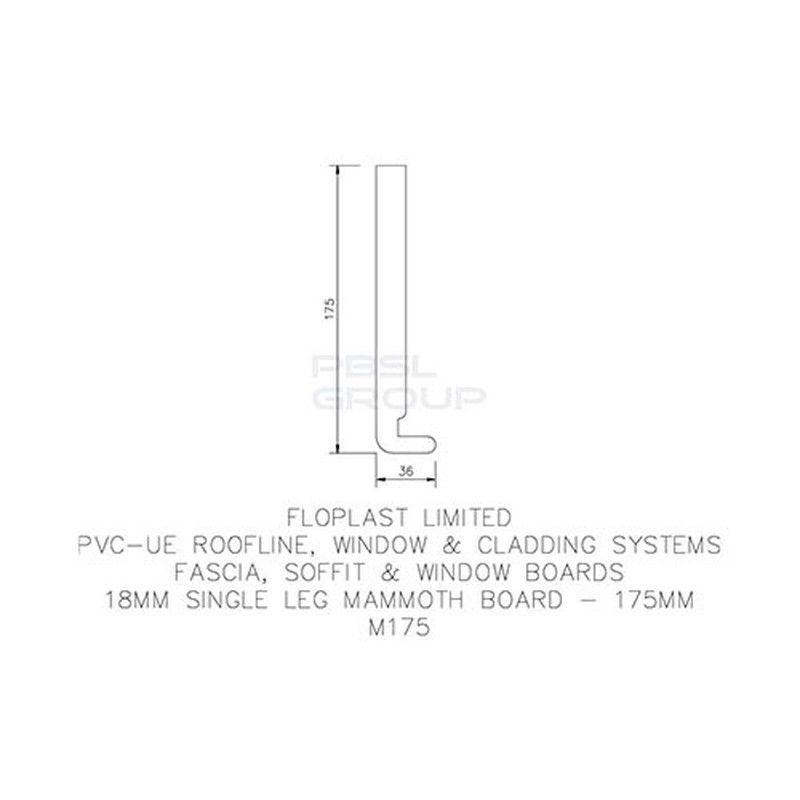

The return leg on the board is slightly rebated to accept a soffit board. The return leg measures 36mm overall from front to back as can be seen in the technical drawing tab.
