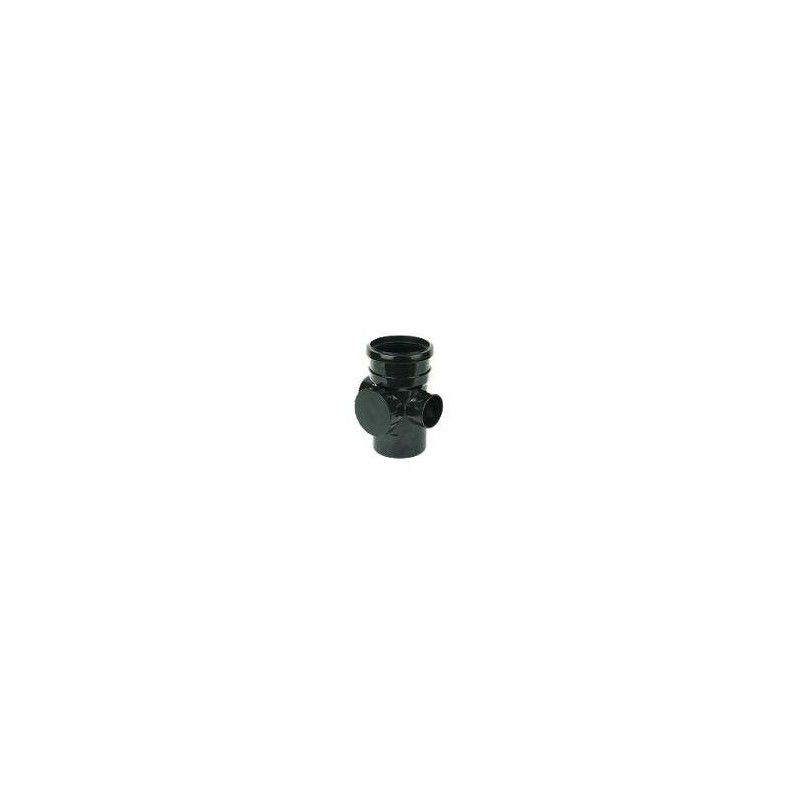

Ring Seal Soil Access Pipe Single Socket - 110mm Black
|Dimension||164mm (H) x 146mm (W) x 219mm (L)|
|Guarantee||1 Year Manufacturer Performance Guarantee|
|Specification||BS EN 1329-1:2000 / BS4514:2001|
The purpose of this 110mm soil access pipe is to allow the soil pipe system to be inspected and cleared in the event of any blockage.
In domestic properties it is usually situated at the foot of the soil pipe at the point where it enters the drainage system. To use the access point, simply remove the access cap by unscrewing it from the threaded projection on the fitting. This could potentially release any blockage above the cap so it is always advisable to stand aside at this point!
This fitting has a ring seal push fit socket on the top end and a plain spigot end at the bottom. The spigot end is the same size as 110mm pipe so it can be connected into the socketed end of another fitting or pipe as required.
Ring Seal Soil Systems
Ring Seal Soil and vent is the most commonly used soil system in domestic and non-industrial commercial properties in the UK.
Our FloPlast ring seal soil system is compatible with most other soil systems that are manufactured to British/European standard.
To install any pipe or fitting into another ring seal fitting, first make sure the end of the pipe has been chamfered. Clean off any dirt or debris and lubricate the joint with silicon lubricant. Push the pipe in squarely until resistance is felt, then withdraw it very slightly to allow for any potential system expansion.
