Ring Seal Soil Bend Double Socket - 135 Degree x 110mm Grey

In stock
Code
SP563G
  • Buy 1000000 for £6.95 £5.79 each and save 11%
From 3 reviews
More Information
Code SP563G
EAN Code 5055149985065
Weight (kg) 0.960000
Angle 135 Degree
Brand FloPlast
Colour Grey
Material PVC-u
Style Double Socket
Guarantee 1 Year Manufacturer Performance Guarantee
Specification BS EN 1329-1:2000 / BS4514:2001
Size 110mm
£7.80 £6.50
You need to spend another £250.00 to qualify for 2.5% discount.

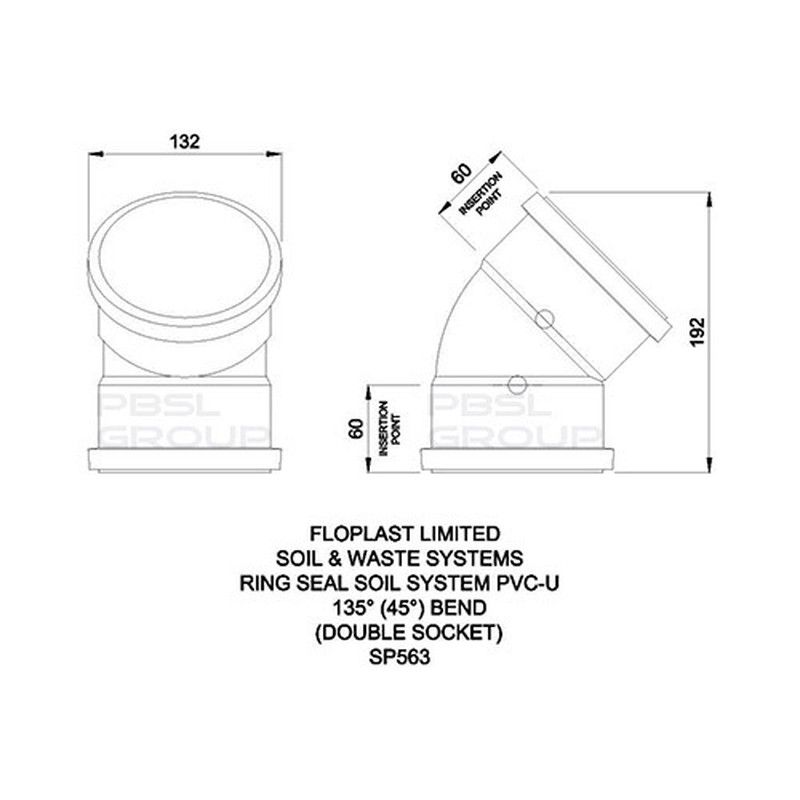

This 45 degree bend is used to change the direction of a PVC soil pipe. It is also sometimes referred to as a 135 degree bend. This fitting can be used in either a horizontal or vertical plane, and two bends together are sometimes used as a pair to create an offset within a pipe run.

Both single socket and double socket ring seal (push fit) options are available.

Ring Seal Soil Systems

Ring Seal Soil and vent is the most commonly used soil system in domestic and non-industrial commercial properties in the UK.

Our FloPlast ring seal soil system is compatible with most other soil systems that are manufactured to British/European standard.

To install any pipe or fitting into another ring seal fitting, first make sure the end of the pipe has been chamfered. Clean off any dirt or debris and lubricate the joint with silicon lubricant. Push the pipe in squarely until resistance is felt, then withdraw it very slightly to allow for any potential system expansion.
