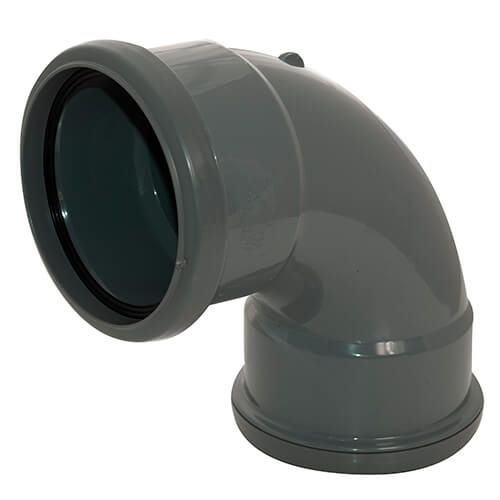

FloPlast Ring Seal Soil Bend Double Socket - 92.5 Degree x 110mm Anthracite Grey
| Code | SP561AG |
|---|---|
| EAN Code | 0755907205316 |
| Weight (kg) | 0.529000 |
| Angle | 92.5 Degree |
| Brand | FloPlast |
| Colour | Anthracite Grey |
| Material | PVC-u |
| Style | Double Socket |
| Specification | BS EN 1329-1:2000 / BS4514:2017 |
| Size | 110mm |
This 92.5 degree bend is used to change the direction of a PVC soil pipe. Most commonly used in a horizontal plane, the 92.5 angle gives a slight fall which creates a self-cleansing flow within the soil pipe.
Both single socket and double socket ring seal (push fit) options are available.
RING SEAL SOIL SYSTEMS
Ring Seal Soil and vent is the most commonly used soil system in domestic and non-industrial commercial properties in the UK.
Our FloPlast ring seal soil system is compatible with most other soil systems that are manufactured to British/European standard.
To install any pipe or fitting into another ring seal fitting, first make sure the end of the pipe has been chamfered. Clean off any dirt or debris and lubricate the joint with silicon lubricant. Push the pipe in squarely until resistance is felt, then withdraw it very slightly to allow for any potential system expansion.
