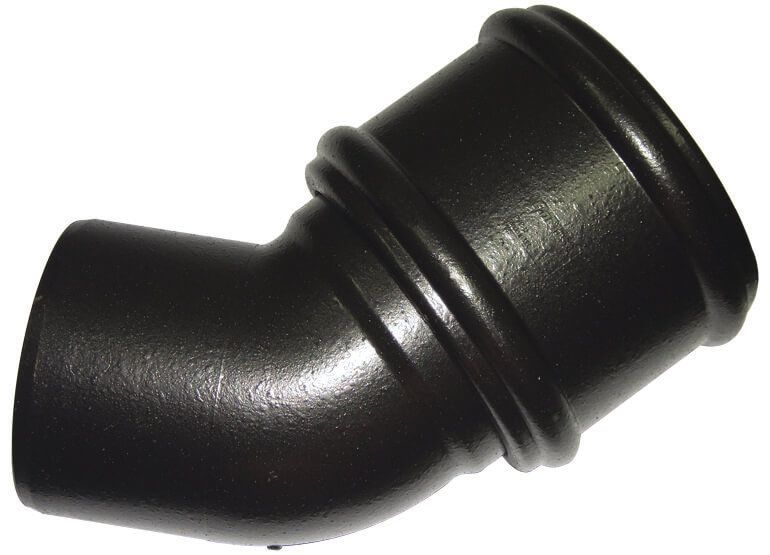

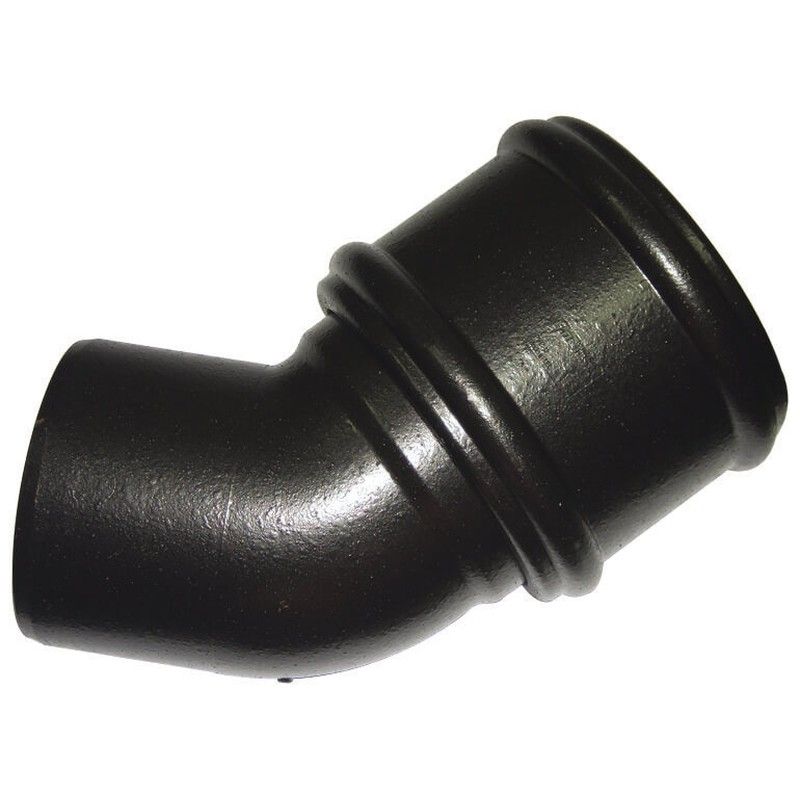

Ring Seal Soil Bend Single Socket - 135 Degree x 110mm Cast Iron Effect
| Code | SP163CI |
|---|---|
| EAN Code | 5055149925344 |
| Weight (kg) | 0.567100 |
| Angle | 135 Degree |
| Brand | FloPlast |
| Colour | Cast Iron Effect |
| Material | PVC-u |
| Style | Single Socket |
| Guarantee | 20 Year Manufacturer Performance Guarantee |
| Specification | BS EN 1329-1:2000 / BS4514:2001 |
| Size | 110mm |
This 45 degree bend is used to change the direction of a PVC soil pipe. It is also sometimes referred to as a 135 degree bend. This fitting can be used in either a horizontal or vertical plane, and two bends together are sometimes used as a pair to create an offset within a pipe run.
Both single socket and double socket ring seal (push fit) options are available.
The cast iron effect finish on this range has been developed over many years using a specially formulated paint process that cleverly mimics the metal products of yesteryear. It really does look like cast iron but with the maintenance free benefits of modern PVC.
The ring seals joints are quick and easy to install, with oversized sockets and wide fixing lugs just like their original iron counterparts. The system, which carries a 20 year colour guarantee, is complemented by a large range of matching gutter products.
Ring Seal Soil Systems
Ring Seal Soil and vent is the most commonly used soil system in domestic and non-industrial commercial properties in the UK.
Our FloPlast ring seal soil system is compatible with most other soil systems that are manufactured to British/European standard.
To install any pipe or fitting into another ring seal fitting, first make sure the end of the pipe has been chamfered. Clean off any dirt or debris and lubricate the joint with silicon lubricant. Push the pipe in squarely until resistance is felt, then withdraw it very slightly to allow for any potential system expansion.
