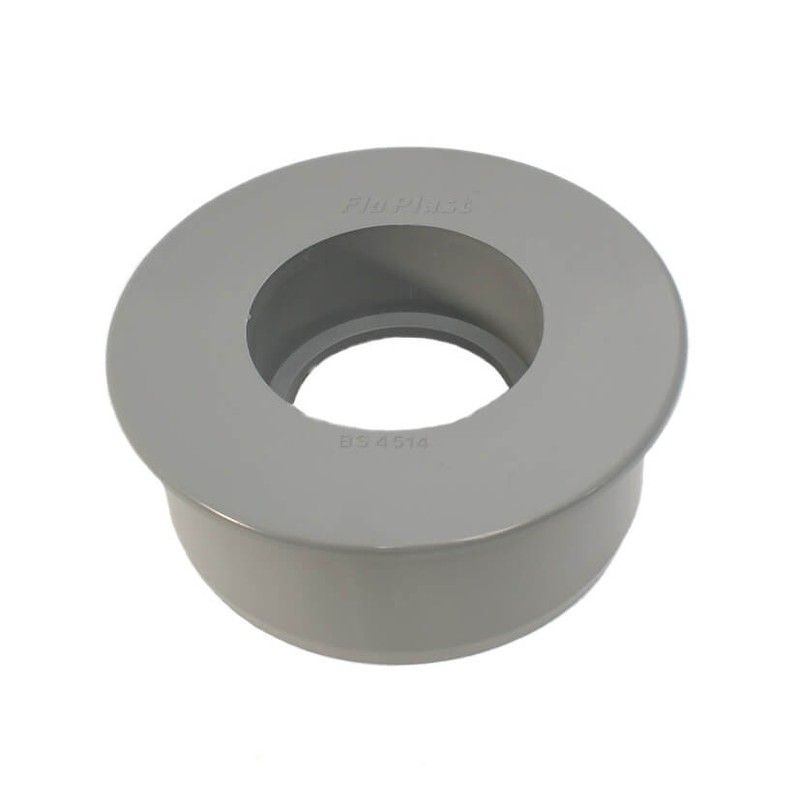

Ring Seal Soil Reducer - 110mm x 50mm Grey
Code | SP95G |
---|---|
EAN Code | 5055149906510 |
Weight (kg) | 0.125000 |
Brand | FloPlast |
Colour | Grey |
Material | PVC-u |
Guarantee | 1 Year Manufacturer Performance Guarantee |
Specification | BS EN 1329-1:2000 / BS4514:2001 |
Size | 110mm x 50mm |
This waste reducer can be used to connect a 50mm waste pipe into 110mm soil pipe.
When a waste pipe is connected directly to a 110mm soil pipe via a short run of pipe, there is always the possibility of trap failure due to induced siphonage. To guard against this it is always safest to use an anti-syphon trap on the sink, basin or bath that is being connected.
Waste reducers have a plain spigot end to enable them to be connected via push fit into the ring seal socket of another fitting or pipe as required.
Ring Seal Soil Systems
Ring Seal Soil and vent is the most commonly used soil system in domestic and non-industrial commercial properties in the UK.
Our FloPlast ring seal soil system is compatible with most other soil systems that are manufactured to British/European standard.
To install any pipe or fitting into another ring seal fitting, first make sure the end of the pipe has been chamfered. Clean off any dirt or debris and lubricate the joint with silicon lubricant. Push the pipe in squarely until resistance is felt, then withdraw it very slightly to allow for any potential system expansion.
