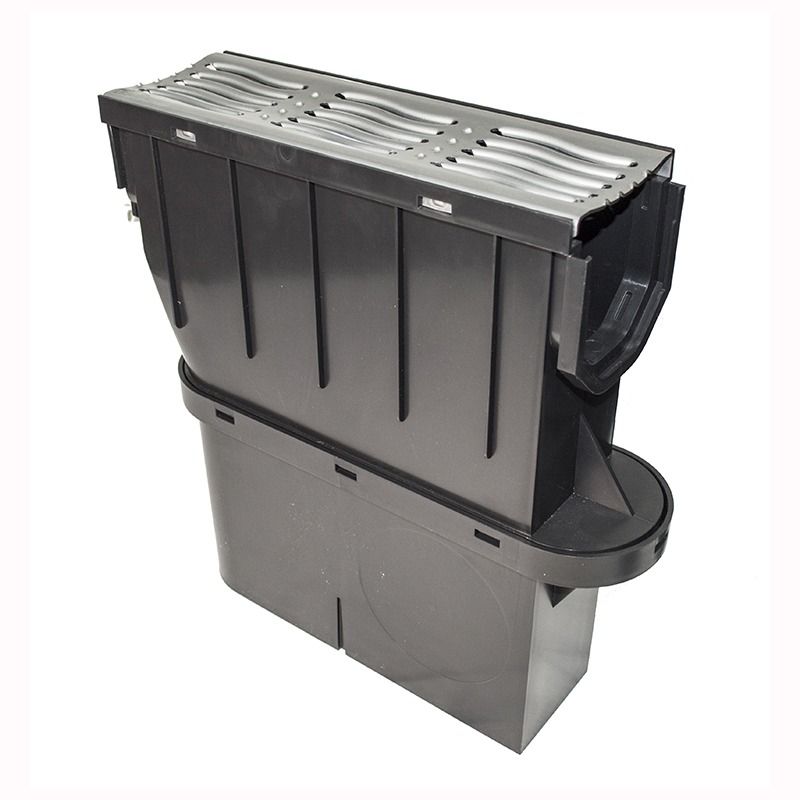

Sump Trap Unit and Basket Galvanised Steel Grating
|Tonne Loading||Domestic Driveways|

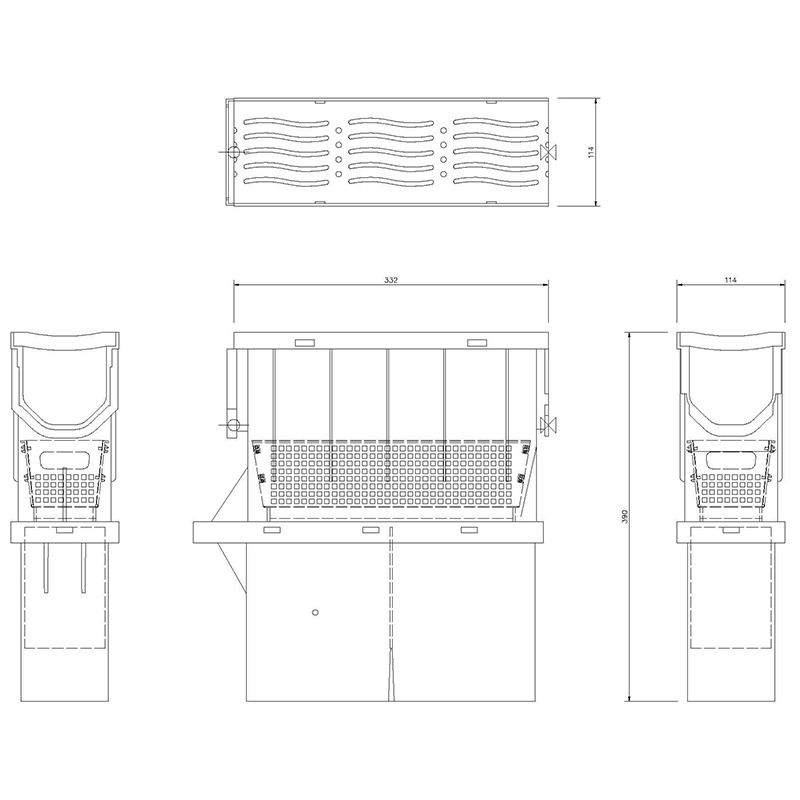

|Dimension||332mm (L) x 115mm (W) x 390mm (H)|
|Guarantee||10 Year Manufacturer Guarantee|
|Specification||BS EN 1433|
Sump Trap Unit and Basket with Galvanised Steel Grating - works in conjunction with our D701 channel drain with Galvanised Steel Grating.
Lightweight and easy to install with an integral water trap to eliminate odours.
100mm and 110mm sealed outlet connections.
Incorporates a heel guard grate.
Click and secure system.
Domestic channel drains, sometimes called Aco or linear drains, are most commonly found around the edge of a driveway or forecourt, often between the driveway and the house or garage. They are also frequently installed at the edge of a patio or paved area.
No special tools are required to install channel drains and it is a fairly straightforward process, but it is important to note that they must always be installed within a bed of concrete. Full instructions can be viewed here.
The water collected within the channel drainage system should be fed into a soakaway system or a surface water drain. If you don’t have an existing soakaway they are simple to construct using our modular crate system. Further details about soakaway construction can be read here.
