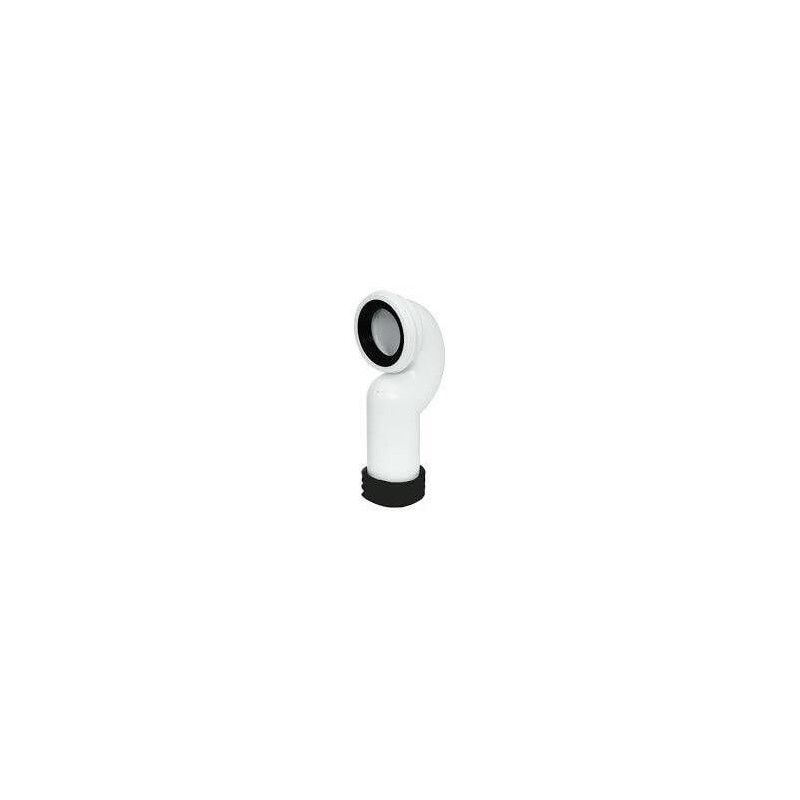

FloPlast Swan Neck Pan Connector - White

In stock
Code
SP100

Click or tap the image to open in fullscreen

FloPlast Swan Neck Pan Connector - White
FloPlast Swan Neck Pan Connector - White
More Information
Code SP100
EAN Code 5055149906916
Weight (kg) 0.463000
Brand FloPlast
Colour White
Projection 140mm
Material Polypropylene
Style Swan Neck

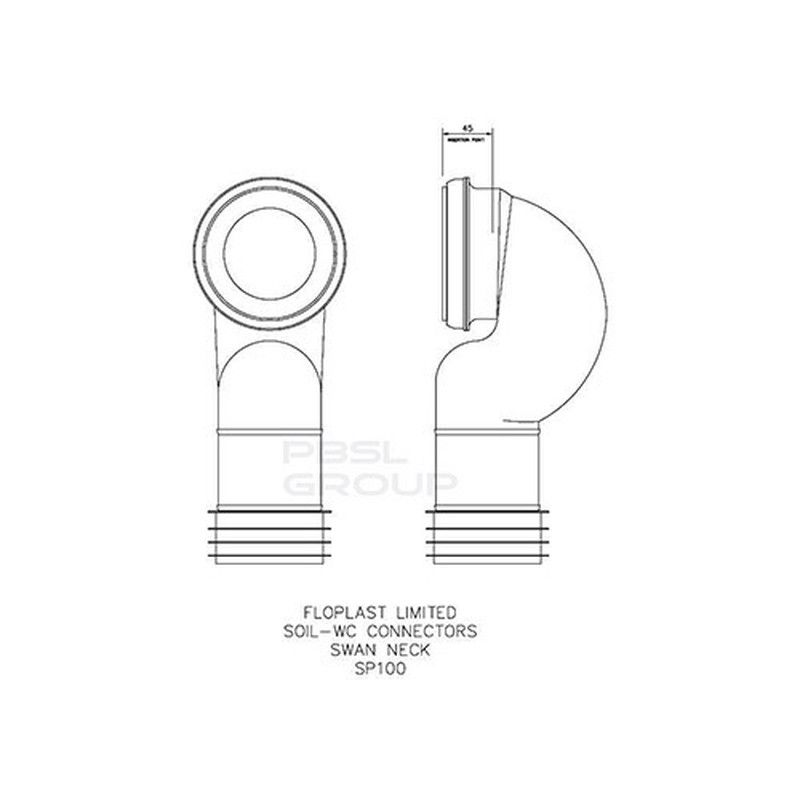

Dimension Fits inside 110mm Soil Pipe - Height from centre of outlet 300mm
Guarantee 10 Year Manufacturer Performance Guarantee
Specification BS5627:1984
Size 110mm
£33.20 £27.67
Spend another £1500 to pay over time with Klarna

Swan neck pan connectors are usually used when a modern close coupled pan (cistern attached directly to the back of the pan) is installed in place of an old low-level pan (pan connected to a wall-hung cistern by a flush pipe).

The outlet of a close coupled pan is closer to the wall in this instance, hence the swan neck connector is required to enable the pan to be connected to the original soil pipe outlet without the need for any modifications to the pipe.

All of the fins on the outlet of the pan connector should be pushed securely into the soil pipe to make the connection. The neck of the pan is then pushed inside the large ring seal at the top of the pan connector. A small application of silicon spray is often useful to facilitate this pan connection. Once the connection has been made, double check that no part of the seal is kinked or trapped.

Our pan connectors are made in durable polypropylene to BS5627:1984. The integral sealing diaphragm allows for out of alignment connections of up to 5 degrees in any direction.

Click here to watch our video showing how to install a trap.
