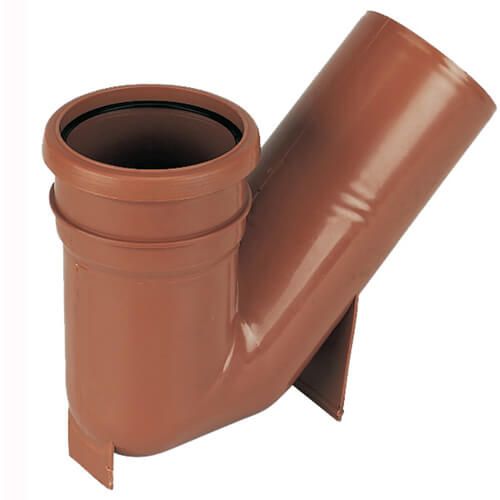

FloPlast Drainage Universal P Trap Gully - 45 Degree x 110mm
Click or tap the image to open in fullscreen
| Code | D500 |
|---|---|
| EAN Code | 5055149937507 |
| Weight (kg) | 0.530000 |
| Angle | 45 Degree |
| Brand | FloPlast |
| Colour | Terracotta |
| Diameter | 110mm |
| Material | PVC-u |
| Pack Size | Single |
| Guarantee | 10 Year Manufacturer Guarantee |
| Specification | BS EN 1401-1 |
| System Size | 110mm |
Drainage gully are usually used externally alongside the house wall when introducing waste or rainwater pipes into a foul drain. They can also be used on surface water drains to collect rainwater from paved areas.
You should always check with your local authority before connecting rainwater pipes into a foul drain unless this is an existing situation.
The top section of any gully should be at least 150mm below the damp proof course level.Gullies provide a trap that stops foul odours from the underground drainage system from escaping into the air.Hoppers such as theD506andD504are often used in conjunction with this gully.
A UC110D coupling is required to connect the outlet of the gully to a 110mm drainage pipe. A single socket bend will also connect to the outlet if required.
Please watch our overview video below
