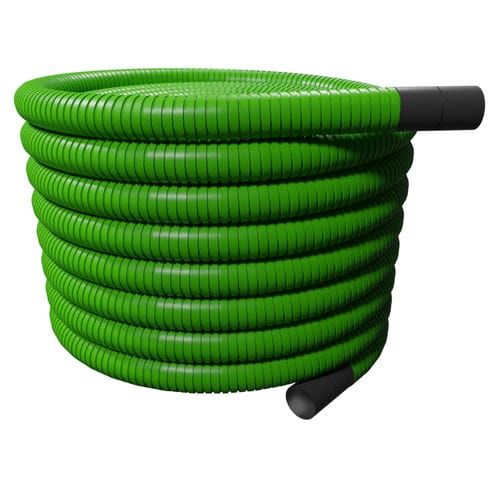

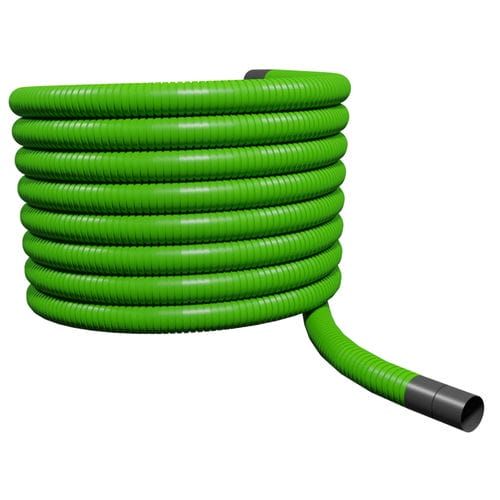

Flexi Underground Ducting CCTV Fibre Optic - 63mm (O.D.) x 50mtr Green Coil
Click or tap the image to open in fullscreen
| Code | D63G |
|---|---|
| EAN Code | 0691208218832 |
| Brand | PBSL Group |
| Colour | Green |
| Length | 50mtr |
| Diameter | 63mm |
| Material | HDPE |
| Pack Size | 50mtr Coil |
| Dimension | 63mm (O.D.) 50mm (I.D.) x 750mm (Coil Diameter) x 450mm (Coil Height) |
| Specification | BS EN 50086-2.4 |
| System Size | 63mm |
Our green underground ducting is used for ducting cable television and telecommunications services as well as CCTV installations. It is available in a coil diameter of 63mm. This measurement refers to the outside diameter (O.D.), the inside diameter (I.D.) is 50mm. Full coil dimensions can be found in the table alongside the product image.

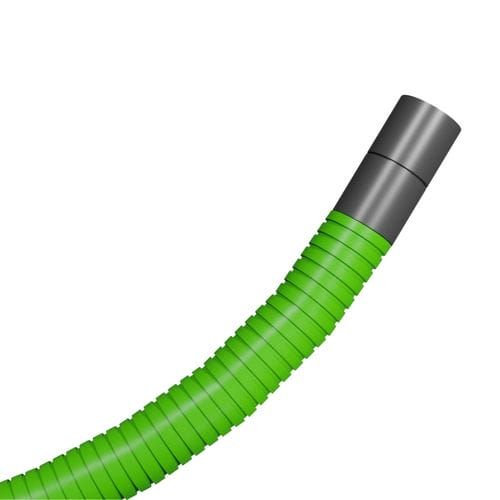

The ribbed external wall ensures that the duct can withstand high compressive forces and the ribbed inner bore resists any snagging during installation.
The coupler enables two coils to be connected together as required.
The length of this coil is 50m.
Underground ducting has two main advantages over rigid duct lengths. As flexi duct is available in relatively long lengths (the standard coil length is 50m), this minimises or eliminates the need for joiners, with duct often being cut to the exact size required.
The main advantage of flexible ducting though is the innate maneuvrability flexibility of the product. This enables any small obstacles to be avoided or required changes of direction to be achieved without the need for additional fittings, saving cost and time.
If you are using flexible duct on your own property, we would always recommend attaching a drawcord to your cable or pipe when you first install the service. This will enable you to easily install additional services at any point in the future if required.
