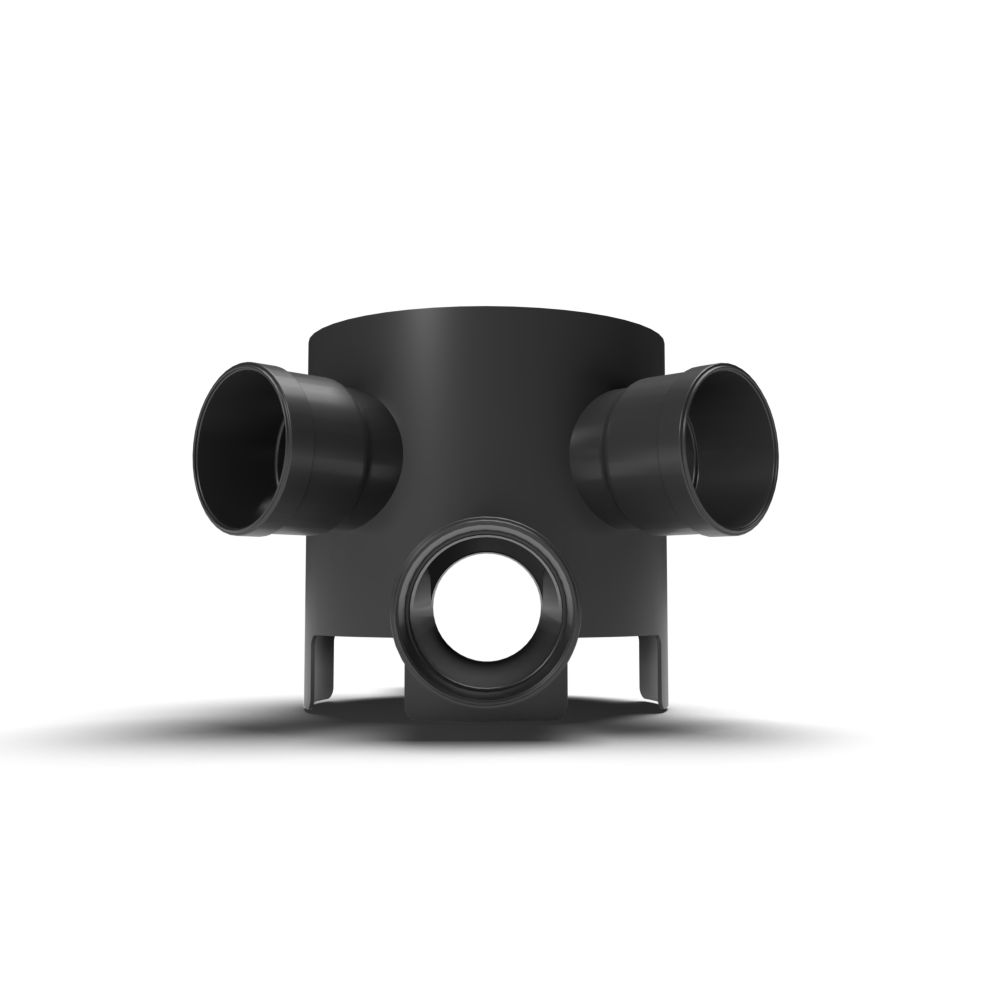

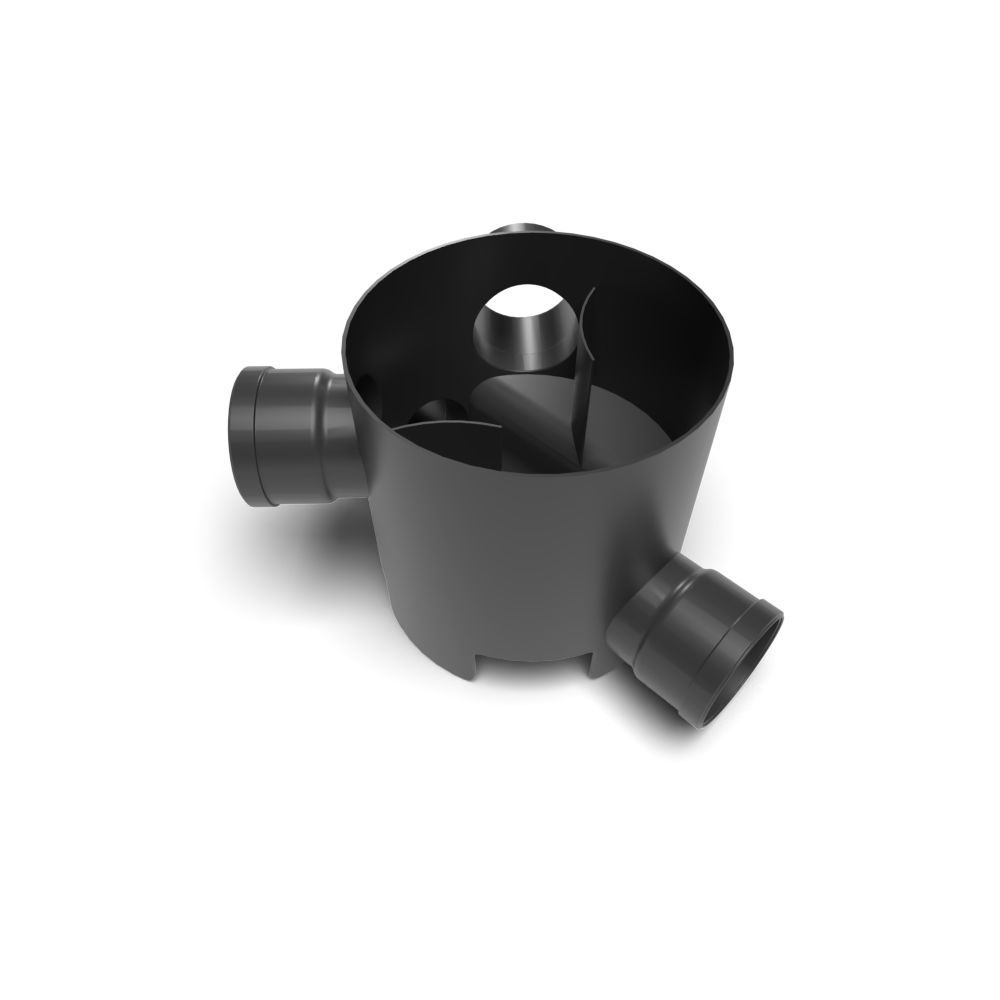

Inspection Chamber Base 3 Fixed Inlets - 300mm Diameter
|Chamber Type||3 Fixed Inlets|
|Dimension||270mm (H) x 300mm (Diameter)|
|Guarantee||10 Year Manufacturer Guarantee|
|Size||270mm Height x 300mm Diameter|
This popular mini chamber is always used in conjunction with our D820 and D822 risers and usually our CLKS300 square cover. Our recessed covers (CD300SR and T1G3) can also be used with this system.
The main channel of the base is left open and the two side inlets are blanked off with integral blanking plugs - simply remove the blanking plug by pushing it out from within the base to open and use the side inlets.
The side inlets are set at an angle of 45 degrees to the main channel. All inlets and the outlet feature a standard 110mm ring seal socket which accepts all leading UK makes of 110mm PVC-u underground drainage.
Inspection Chamber Components
Whilst most customers generally order inspection chambers as sets (base, risers and cover) there are often occasions when it is easier to order the chamber in its individual components. This allows for greater flexibility on site, for example where the final drainage layout is likely to differ from that suggested in the plans, or where the finished ground levels are subject to change.
All of these components can be interchanged with the relevant chamber sets, so if you are simply looking for an additional riser then you are in the right place! Just make sure that the manufacturers of each are the same, as chamber bases and risers from different manufacturers are rarely interchangeable.
All of our inspection chamber components are sourced from reputable supplier partners who are leaders in the UK market such as ClarkDrain and FloPlast.
Inspection chambers are a vital part of the underground drainage system, whether it be residential or commercial. They are necessary to provide access into various key points of the underground drainage system. Such access points are used for maintenance tasks such as inspecting and testing pipes to ensure that effluent is flowing correctly and to clear any potential blockages with drain rods or high pressure jetting as required.
