Introduction To Our Nero Permeable Paving
Our Rainsmart permeable paving units are innovative, low maintenance, and easy to install. The pave provides a permeable surface for parking or driving on giving the flexibility to create car parks and access roads anywhere.
Nero Pave is a 50mm paving system that allows you to create a permeable surface for parking or driving on. Made from 90% recycled polypropylene and 10% proprietary mix, each module is 500mm x 600mm in size and comes with integral tongue and groove clips for fast and easy installation.
The compressive strength of 225 tonnes per square metre means that it can be used under the heaviest of loads, yet the innovative design ensures that the structure also protects vegetation from compaction.
A high void ratio (95%) means lots of space for root development and stormwater infiltration, meaning that surfaces installed with Nero Pave can reduce or eliminate the need for more traditional stormwater structures.
Due to its high load-bearing capacity, the paving can also be used for access lanes and fire roads in addition to parking. The high-confined crush strength of our permeable paving offers a fast, economically feasible, and proven solution for this application.
Nero Permeable Paving Applications
Rainsmart 50mm Nero Pave Cell is a lightweight, yet incredibly strong Cell panel, ready to be filled with Gravel or Soil mix to create an aesthetically pleasing natural Green or Gravel surface to drive on for:
- Overflow and stadium event parking
- Church parking
- Green driveway
- Gravel car park and driveways
- Parking aisles and bays
- Vehicle storage yards
- Loading dock areas
- Trails for multiple uses
- Outdoor bulk storage areas
- Infiltration basins
- High-use pedestrian areas
- Utility access ways
- On street parking - grass shoulders
- Golf buggy paths
- Erosion control
When used on grass the unique 3D cell structure allows both vertical and horizontal root growth which ensures grassroots remain healthy after installation.

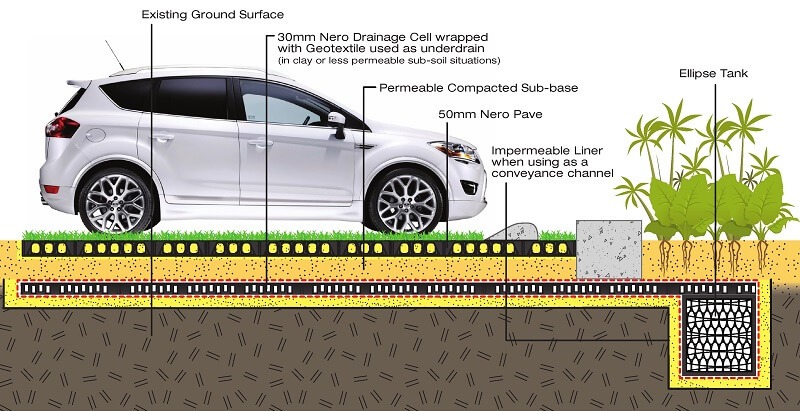

| NERO PAVE PERMEABLE GRASS PAVING |
 |
On gravel, the structure of the paving provides perfect containment of the gravel meaning that large parking surfaces can be maintenance-free.

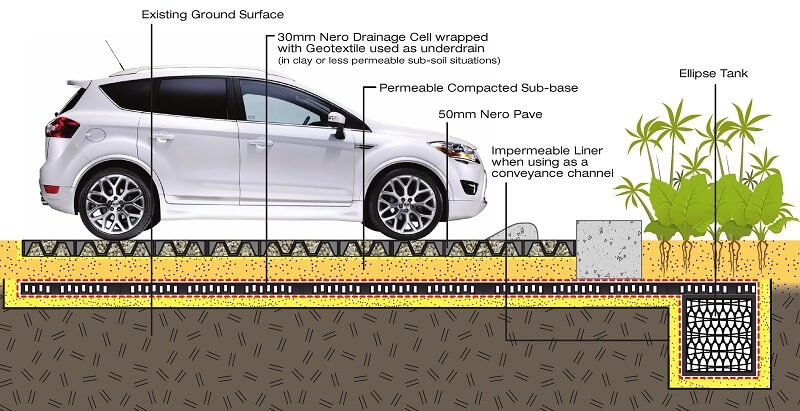

| NERO PAVE PERMEABLE GRAVEL PAVING |
 |
Nero Permeable Paving Technical Details
| NERO PAVE | |
| Dimensions | 500mm (W) x 600m (L) x 50mm (D) |
| Surface Void Area | > 90% |
| Internal Void Area | 95% |
| Material | 90% Recycled Polypropylene + 10% propriety mix |
| Colour | Black |
| Biological & Chemical Resistance | Unaffected by moulds and algae, soil-borne chemicals, bacteria and bitumen, oils & light acid, alkaline solutions |
| Service Temperature | -10 to 85 degrees C |
| Compressive Strength / Ultimate Load | 225 tonnes / m2 |
| Flow Rate | 23.5 l/ms @ 1% gradient |
Advantages of Nero Permeable Paving
- Extreme Strength - Strongest product in the market with load carrying up to 235 tonnes/m2
- Provides Protection - Protective casing around grass module makes regeneration of surface quick and efficient
- Environmentally Friendly - Made from selected Recycled Polypropylene
- Effective Roof Growth - Cell structure allows for 3D root growth ensuring healthy grass
- Easy Installation - Lightweight fit in modules using tongue & groove clips - no machinery needed
- Creating a Permeable Surface - Water infiltrates through profile reducing stormwater run-off
